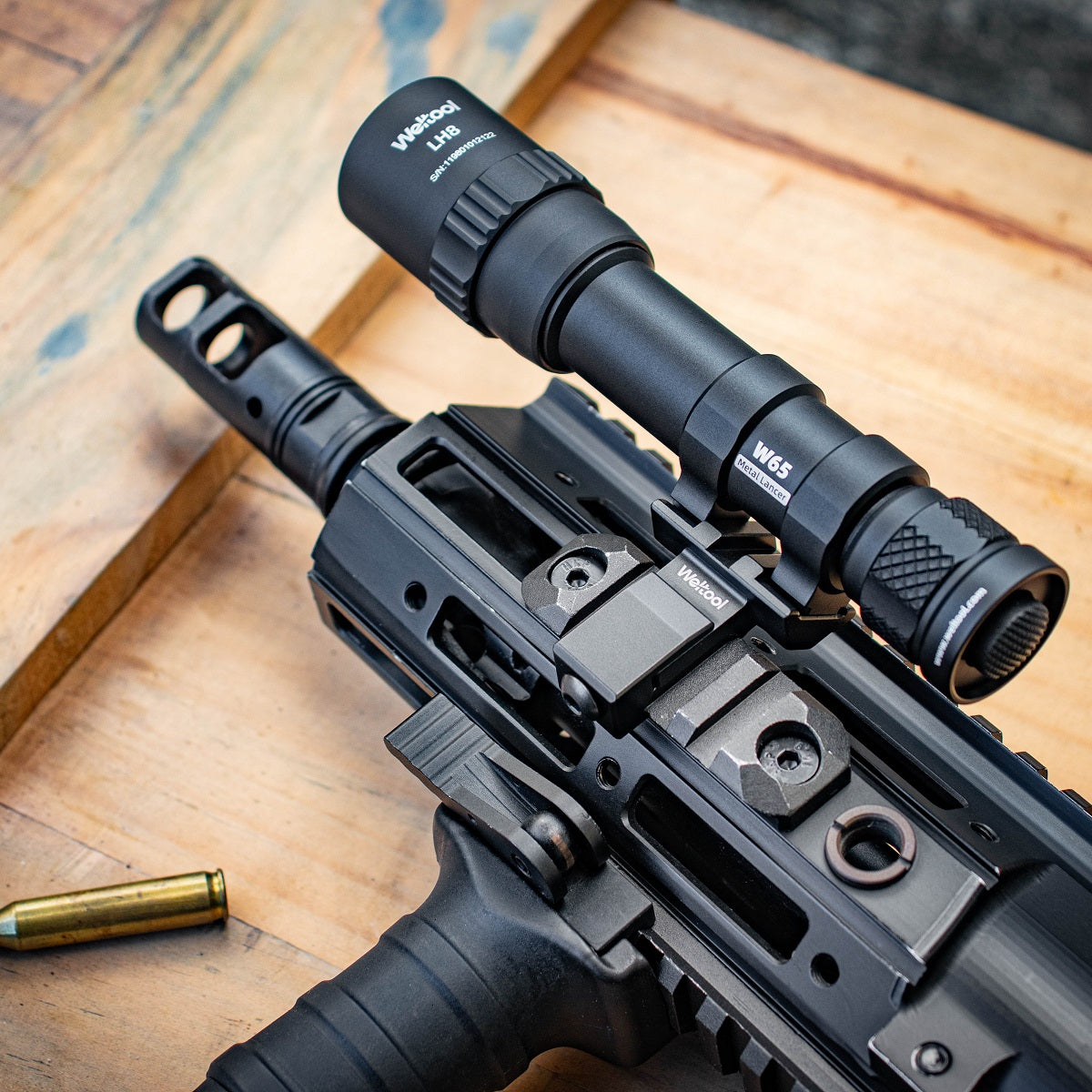

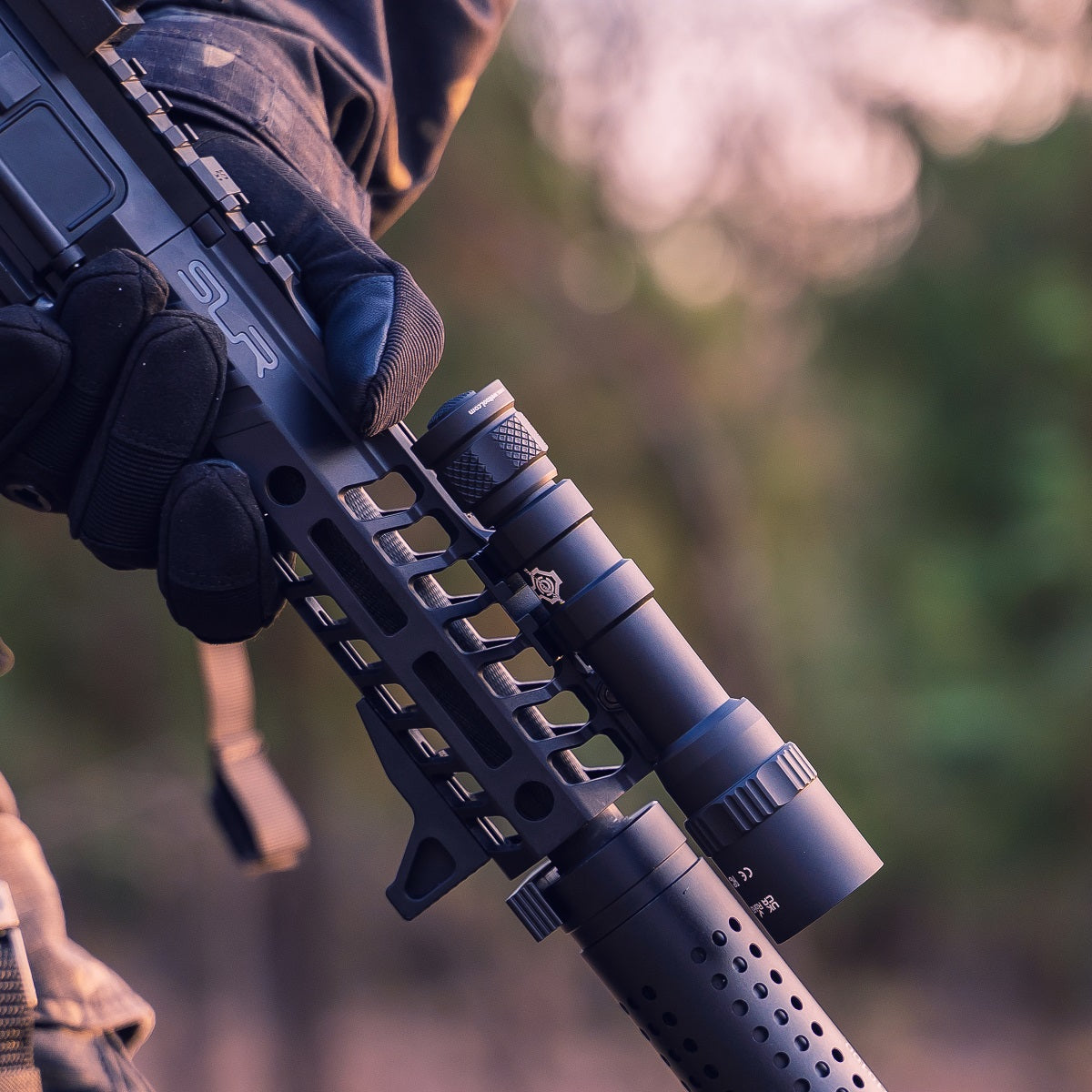

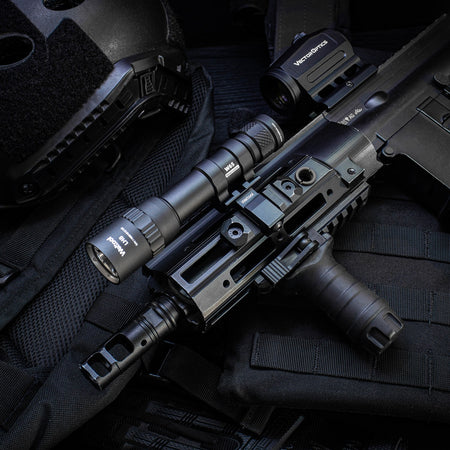

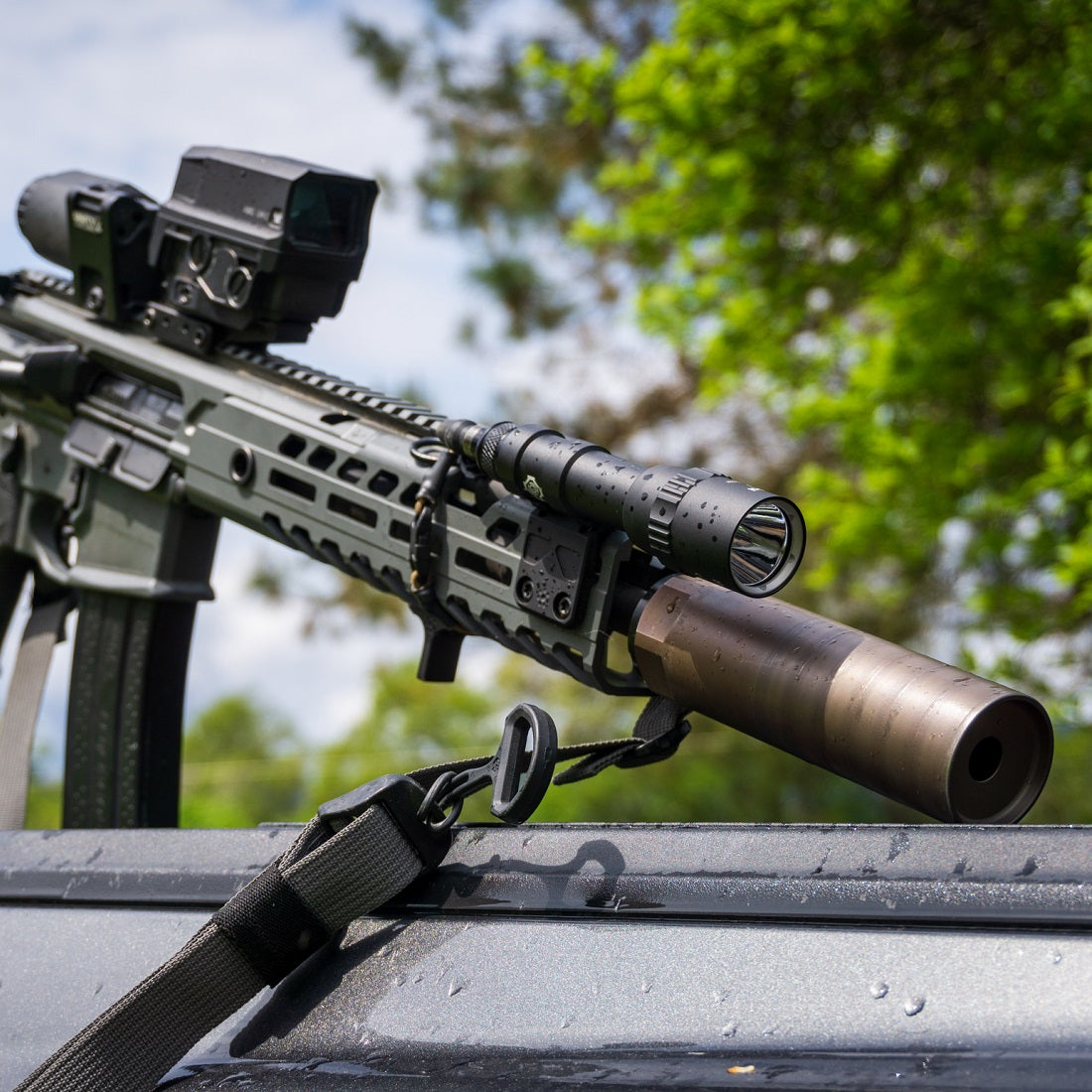

W65B/W65C is a high luminous flux, high luminous intensity weapon light, W65B luminous flux 1250 lumens, beam throwing distance 633yd, luminous intensity 83,900 candela; W65C luminous flux up to 1750 lumens, luminous intensity 77,000 candela. W65B/W65C can use 1 18650 Li-ion battery or 2 CR123A batteries. The diameter of the light head is only 31.5mm, and there are 2 mounting holes on the Light body, which can be installed with rail mounts, such as Weltool PM4 mounts, so the weapon light can be mounted on M-LOK or Picatinny, Key Mod and MIL-STD- 1913, STANAG 2324, STANAG 4694, Weaver and other types of rails, suitable for most rifles or carbines.

IP67 protection standard, waterproof and dustproof, recoil resistance. Forward clicking switch, W65B and W65C are modular design, light head and body and tail cover can be compatible with Weltool series accessories.


Material: aluminum alloy, surface anodized (Black)

Light source: high power white light X-LED


Battery Type* 18650 2*CR123A 18650 2*CR123A
CCT 5700K
Light Output 1250 lumens 456 lumens 1750 lumens 558 lumens
Beam intensity 83900 cd 35600 cd 77000 cd 27200 cd
Distance 633yd 412yd 605yd 359yd
Runtime 1.5h 1.25h 1.5h 1.25h

*Using Weltool UB18-30P li-ion battery or Panasonic and Duracell CR123A lithium battery, the data obtained from outdoor ventilation environment testing.

Battery type: 1 rechargeable High Drain 18650 li-ion battery or 2 CR123A lithium batteries

Switch: Tail push button switch, 50,000 press cycles, can carry 10A

With polarity protection

With low battery reminder function, battery over-discharge protection function (only when using rechargeable lithium-ion battery)

No flicker, no noise, and temperature control protection

Double-sided AR-coated tempered glass lens

Passed 1 meter drop test


Each light has a unique serial number

Dimensions: (head diameter) 31.5mm, (length) 149mm±0.5mm

Weight: 107g ± 0.5g (excluding battery)

 *** Battery Included ***: Rechargeable High Drain 18650 li-ion battery, O-ring

5700K Beam:


6500K Beam:

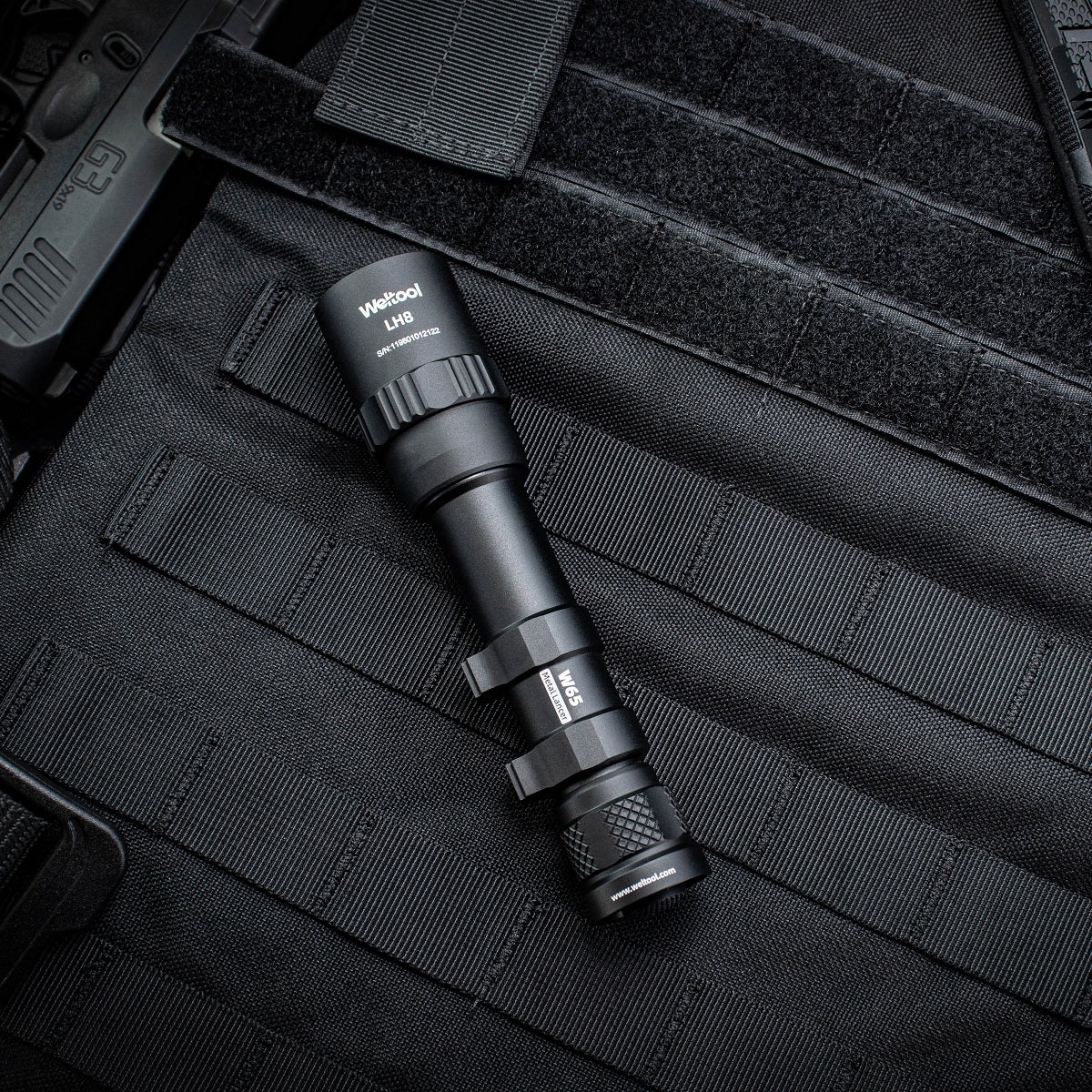

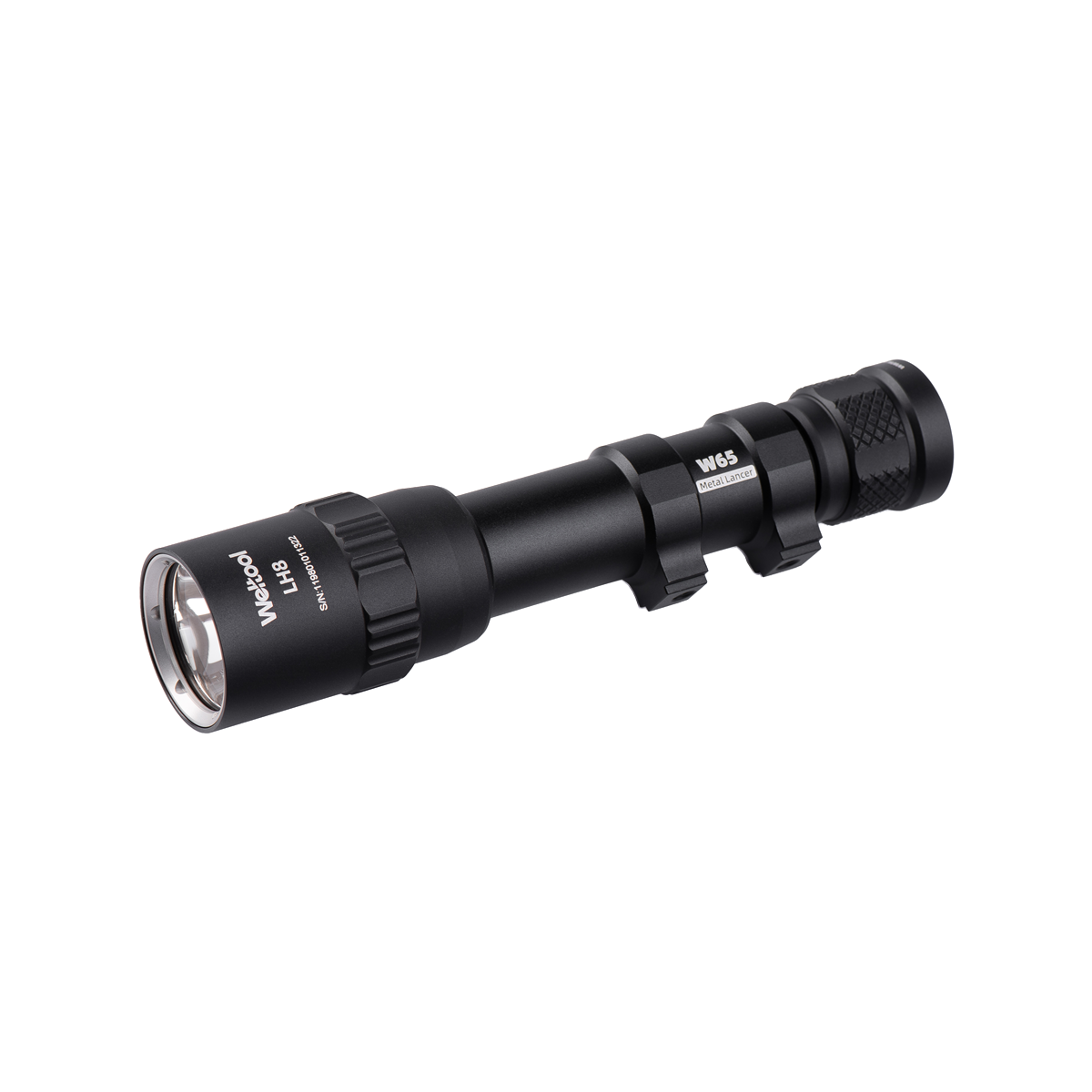

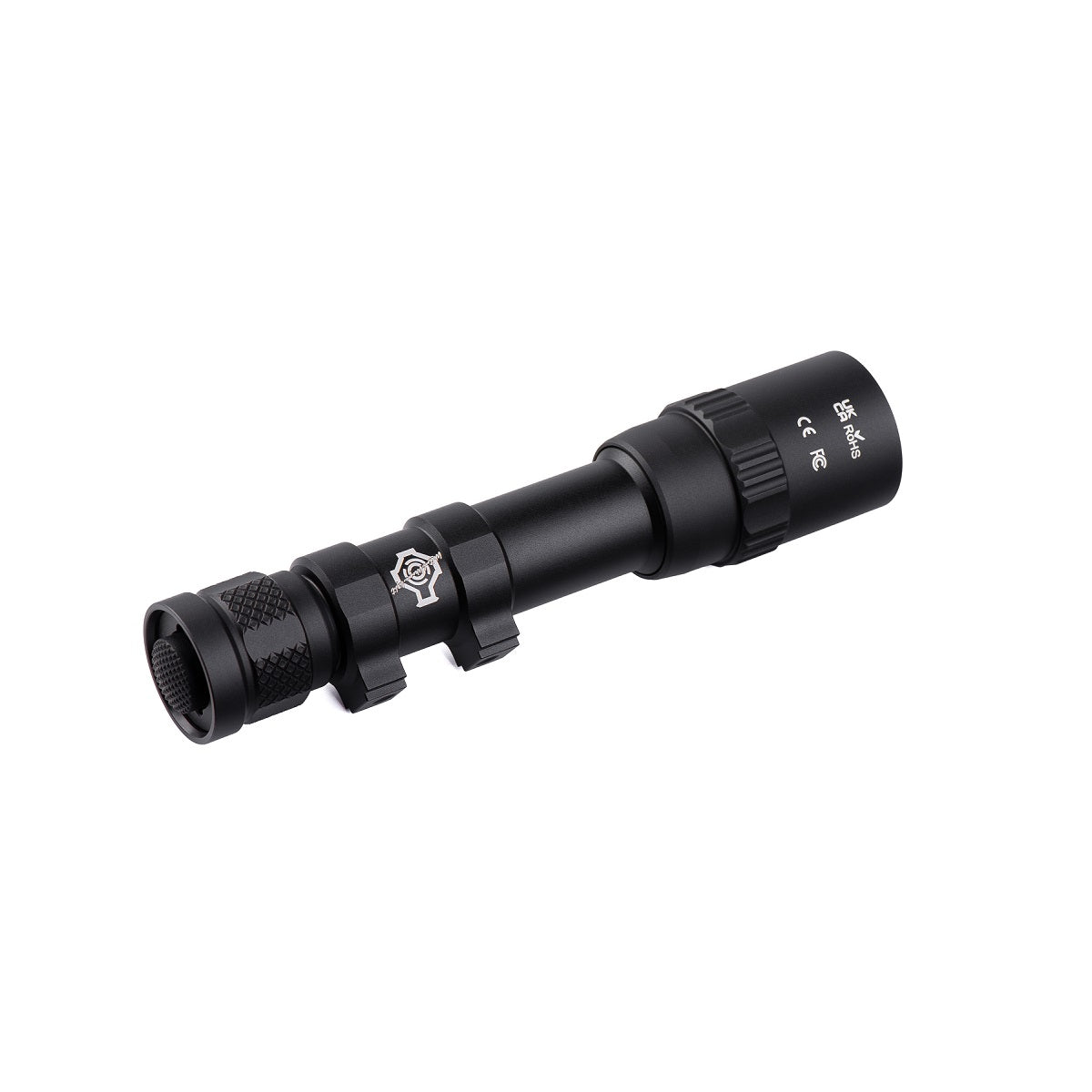

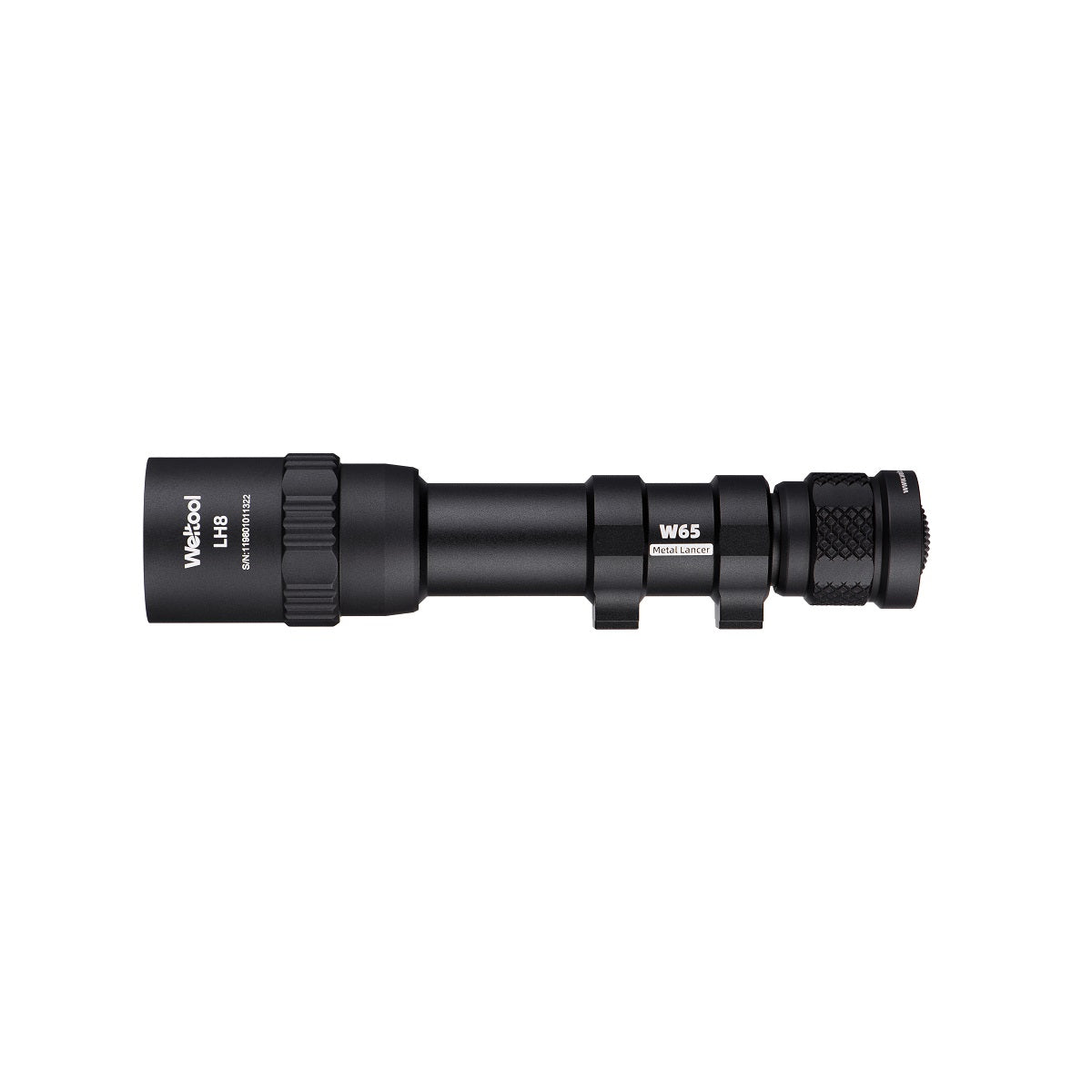

Weltool W65B and W65C Metal Lancer
