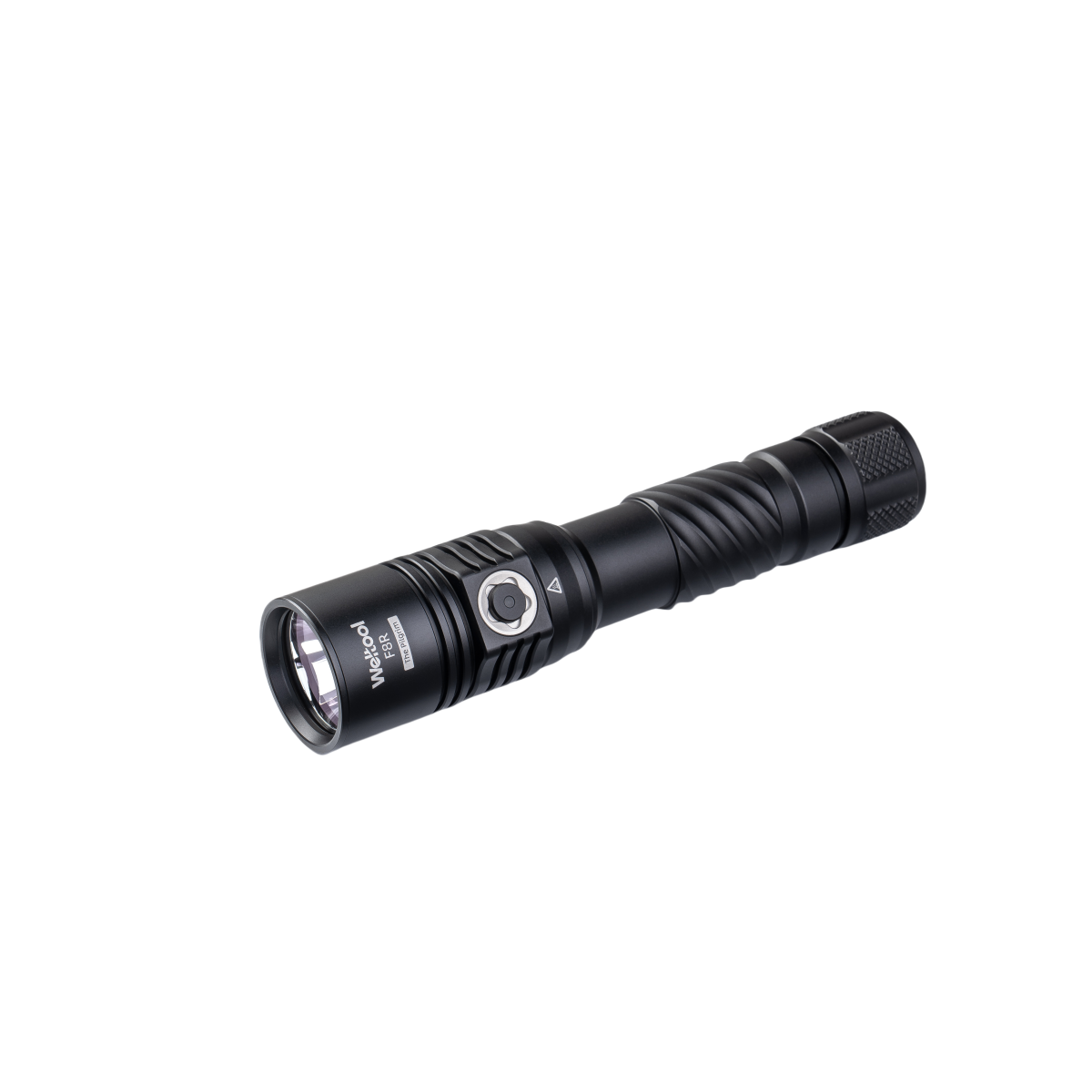

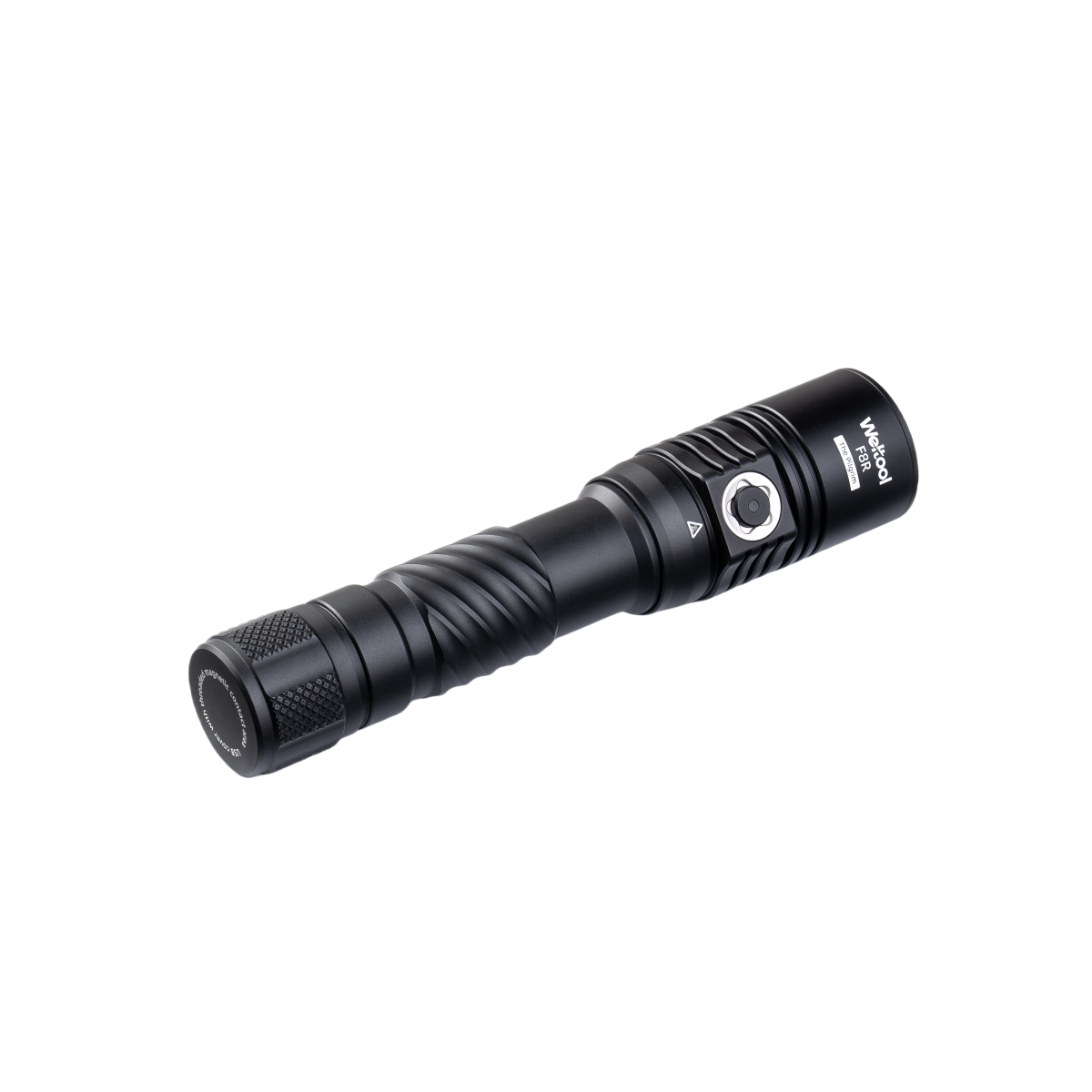

Weltool F8R "The Pilgrim" Rechargeable LED Flashlight 1600 Lumens

The Weltool F8R is a rechargeable long-range LED flashlight featuring a patented waterproof and dustproof USB-C charging structure. It uses a high-capacity 11,000mAh full-tab lithium-ion battery, providing extended runtime. The high mode delivers 1,000 lumens with a constant brightness for 2.5 hours. At full power, it outputs 1,600 lumens with 200,000 candela, achieving a beam distance of 894 meters, and includes a strobe function.

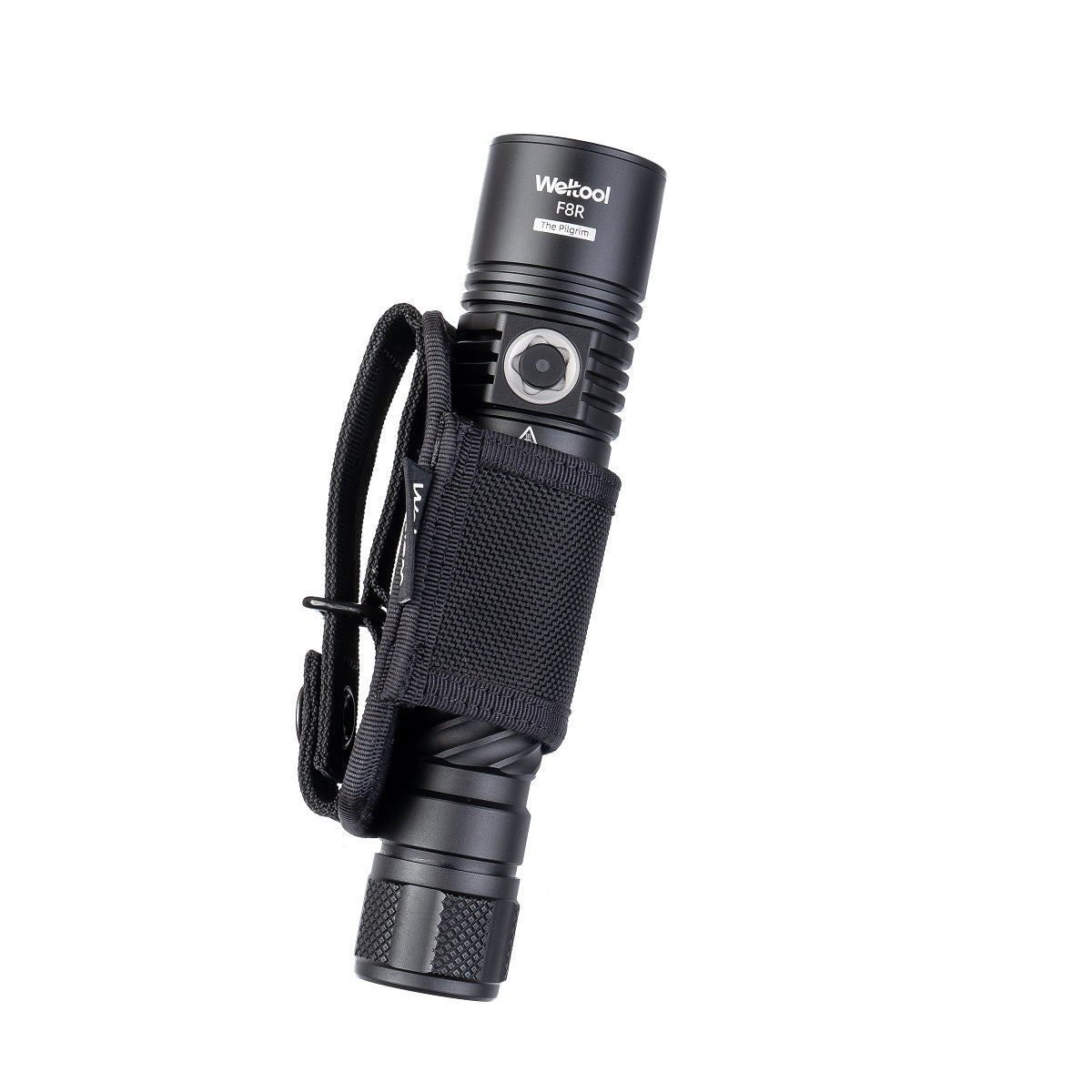

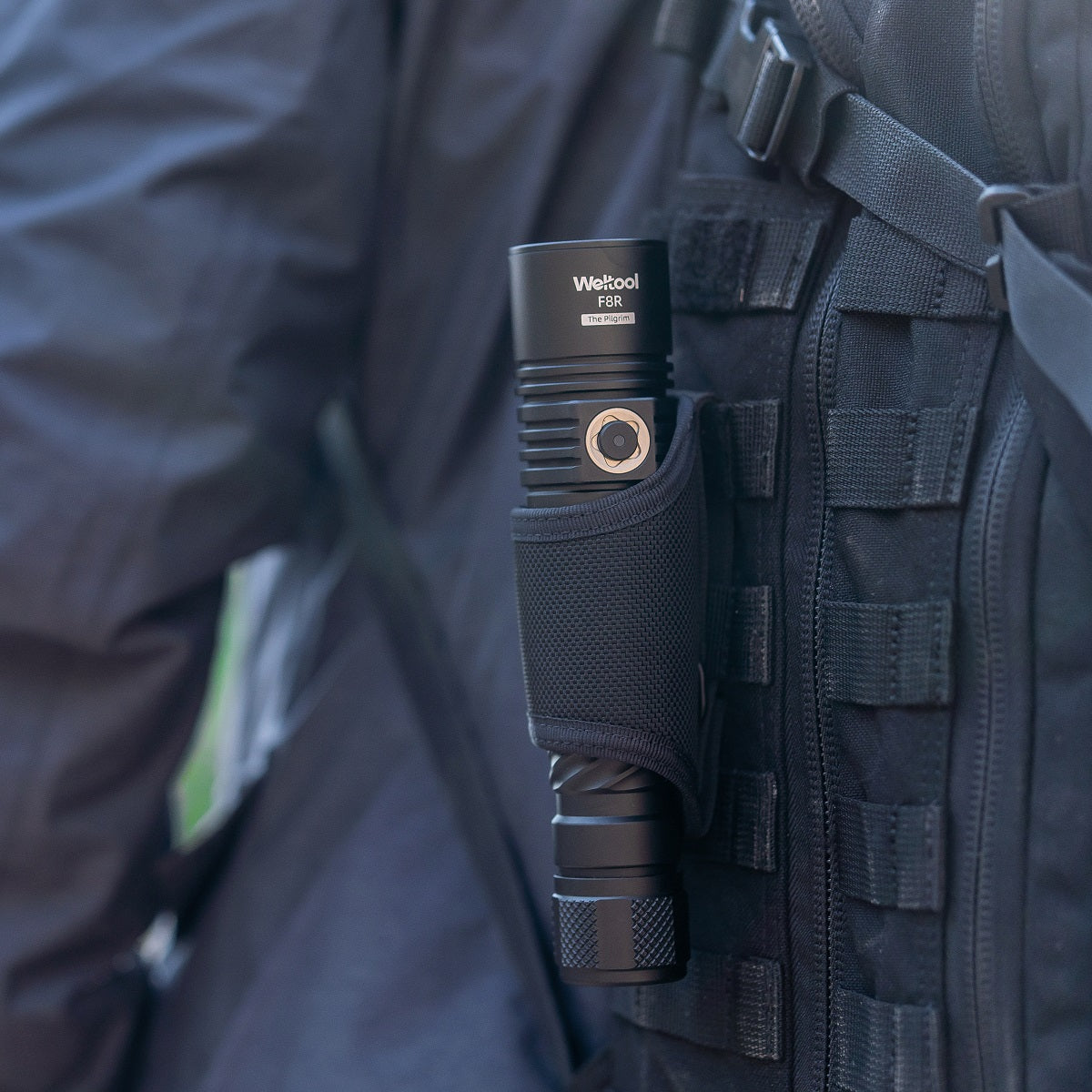

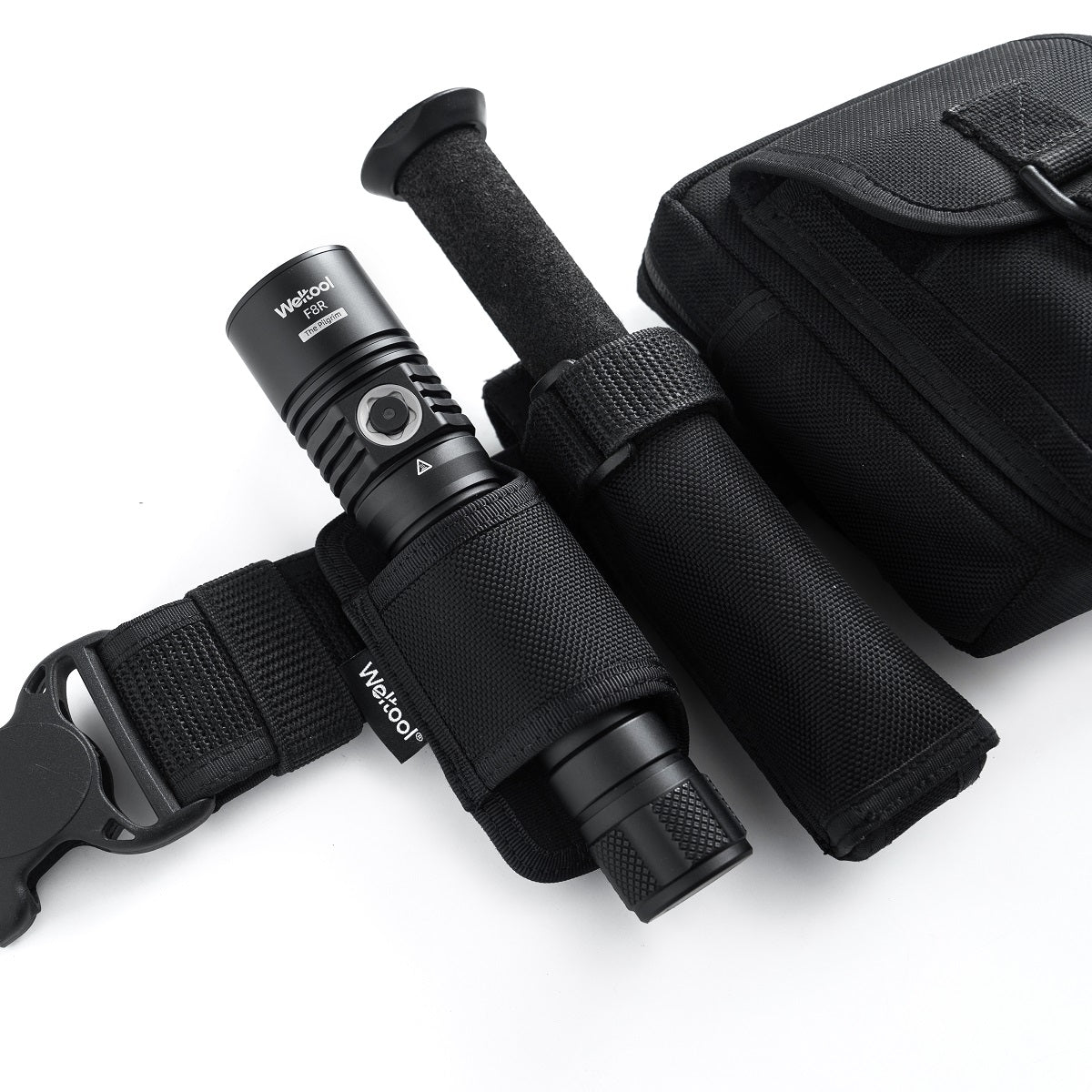

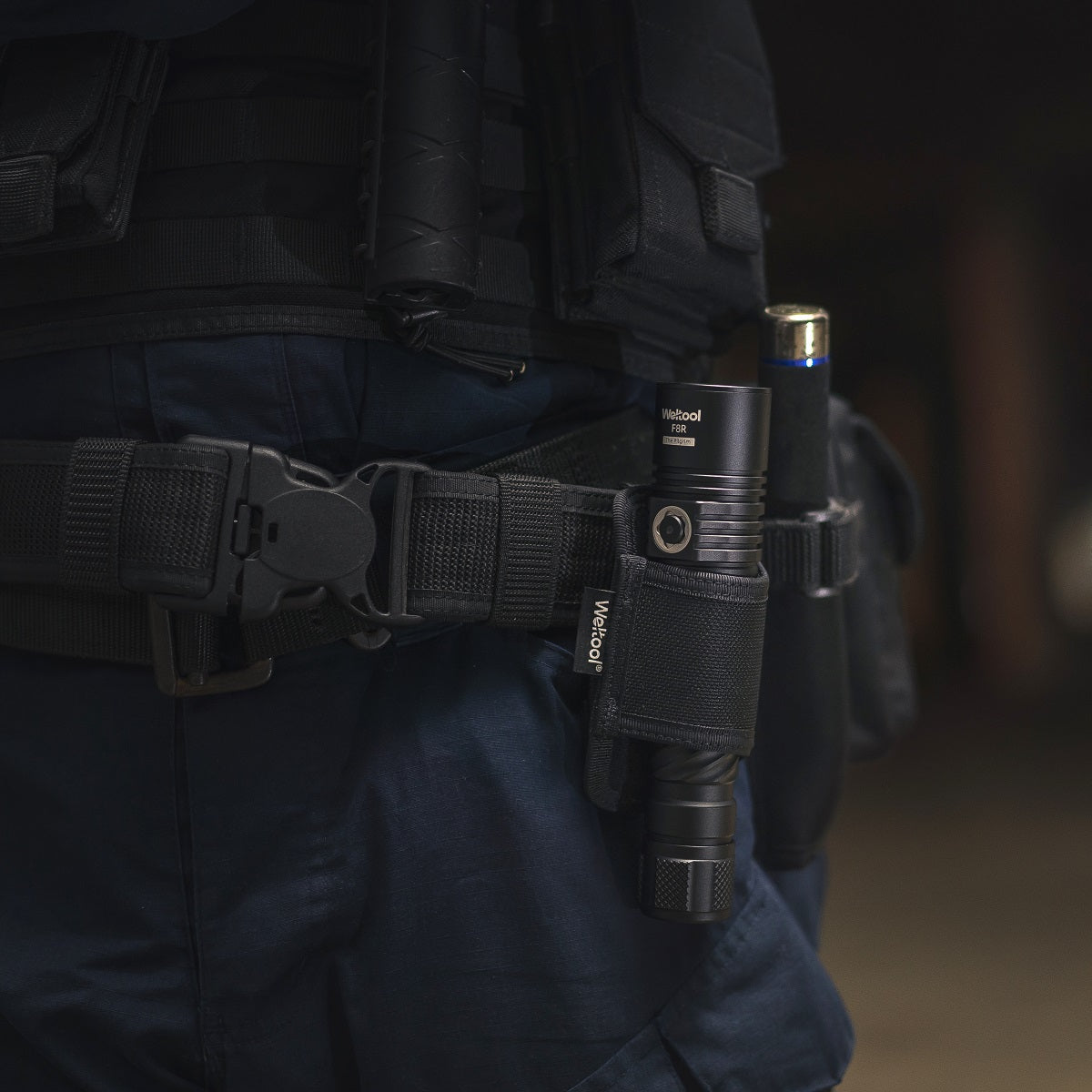

The side electronic switch features a battery level indicator, and the charging port includes a charging status indicator. With 15W fast charging. The flashlight is equipped with a switch lock function to prevent accidental activation. The F8R can be stored in the Weltool FH4 flashlight holster and mounted on a duty belt, making it particularly suitable for outdoor search, rescue, law enforcement, patrol, and similar applications.

Performance and Specifications:

• CNC machined T6 series aluminum alloy with hard anodized surface
• Aluminum alloy reflector and coated tempered glass lens
• Single high-power white X-LED light source

Output:

The above data was obtained through testing with the Weltool INR26-110 lithium-ion battery under normal temperature conditions. Different testing environments and conditions may affect the results, and the data is for reference only.

The flashlight has battery over-discharge protection, battery reverse connection protection, low voltage reminder function, and low voltage cut-off protection function.

Full power mode has overheat protection function; the flashlight has no flicker, no noise, and low standby current.

Patented USB charging structure, waterproof and dustproof; the USB port waterproof cover has a magnet, and the waterproof cover can be adsorbed on the tail cover when charging.

• IP67, can be used in heavy rain
• Passed the 1-meter height drop test
• Each flashlight has an independent serial number
• Weight: 382±1g (including battery)
• Dimensions (±0.5mm): (head diameter) 41.5mm, (barrel diameter) 30-33mm, (length) 192mm
• Included: 1 INR26-110 lithium-ion battery, Type-C charging cable, O-ring

Switch lock and unlock function:

In the off state, long press the switch for more than 5 seconds to lock, and the indicator light and main light on the switch button will flash 3 times at the same time to indicate that it has been locked; after locking, the flashlight will remember the lock state and mode, and you need to unlock it when replacing the battery again.

After locking, long press the switch for more than 5 seconds to unlock, and the main light will turn on in memory mode after unlocking.

Operating Instructions:

1. First, install the battery correctly. This product can only use 1 Weltool INR26-110 lithium-ion battery.

2. The flashlight has a polarity protection function. If it does not work, please check whether the battery is reversed in time.

3. Press the switch to turn on or off the flashlight.

4. After turning on the flashlight, press and hold the switch, the flashlight will automatically switch to different modes. Release the switch to select the current mode and keep it; double-click quickly in shutdown or any mode to enter full power mode, and triple-click quickly to turn on strobe. After the flashlight is turned off, the mode before shutdown will be memorized (but full power and strobe are not memorized).

5. At the moment of power on or during use, the power indicator will turn on (green light when the power is sufficient, red light when the power is low, and the indicator will automatically turn off after 5 seconds); when the power is very low, the red light will keep flashing, and the main light of the flashlight will also flash, and then the flashlight will turn off at any time.

6. The power can also be tested when the flashlight is locked: press the switch once, and the power indicator will turn on.

7. The charging port has a charging status indicator light. The red light means it is charging and the green light means it is fully charged.

WARNING:

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

• Do not disassemble the parts by yourself, this will void the warranty and may damage the flashlight.

• It is normal for the flashlight to heat up when it is working; however, it is only recommended to use it in an environment where the outdoor ventilation (wind speed exceeds 5m/s) and the temperature is below 25 degrees Celsius! Continuous high light for a long time will accumulate heat. Turn off the flashlight in time when the hand feels a lot of heat; turn it on again after the flashlight cools down.

• After long-term use, please replace the O-ring in time to maintain waterproof performance.

• After long-term use, Please use professional grease to lubricate the thread in time.

• Please clean the conductive contact surface of the flashlight in time to ensure the normal operation of the flashlight

• We recommend that you remove the batteries and recharge the batteries at least every 3-4 months when you will not use the flashlight for an extended period of time.

• This flashlight has excellent waterproof effect, but it cannot be used as a professional diving flashlight.

• Do not aim the beam at the eyes and skin to avoid vision damage or skin burns, and keep away from children.

• Do not aim the beam at other people, nor at mirrors, glass or objects that may reflect light on the surface. The reflection may cause the same damage as direct light; it is strictly forbidden to aim at moving airplanes and cars!
