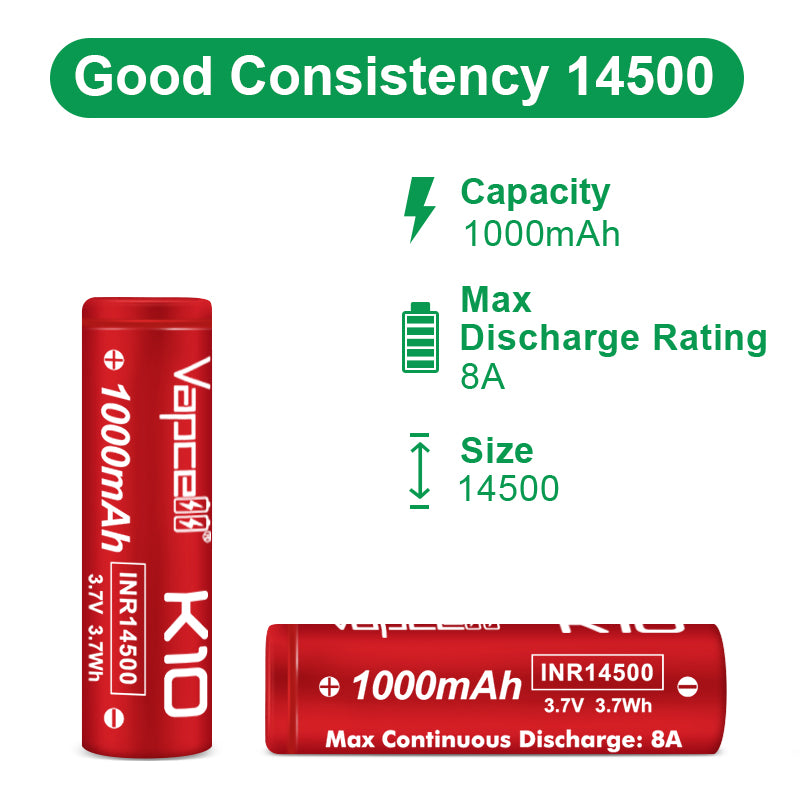

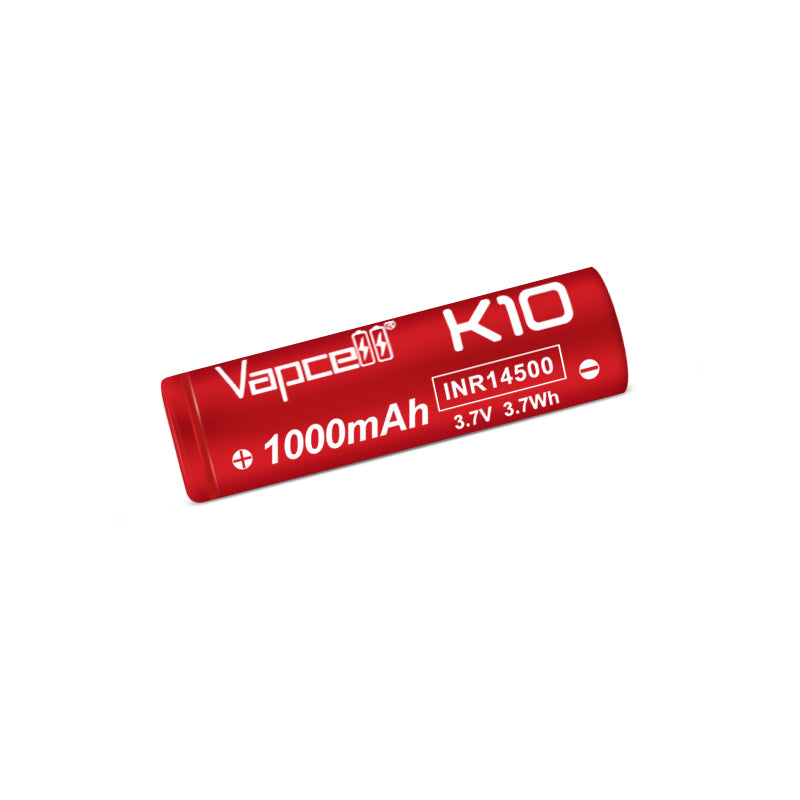

Vapcell K10 14500 1000mAh 8A High-Drain Rechargeabl Li-ion Battery (Flat Top)
Couldn't load pickup availability
PLEASE NOTE:
The height of the vapcell K10 battery cell is 50mm, which is 1mm higher than the H10's 49mm.
Pointed version: When ordering K10 with pointed battery, the default is a short pointed battery.
If you need a high-pointed battery, please make a note.
If you need to process sharp points, it is recommended to choose a shorter version for sharp point processing.
Specification:
|
Model |
INR14500 K10 |
|
Size |
14.1±0.2*50.1±0.3mm |
|
Type |
Flat top |
|
Nominal voltage |
3.60V |
|
End-of-charge voltage |
4.20V |
|
End-of-discharge Voltage |
2.50V |
|
Typical Capacity |
1000mAh (0.2C discharge) |
|
Min capacity |
900mAh (0.2C discharge) |
|
Weight |
Max:24g |
|
Internal resistance |
Max:25mΩ(AC 1kHz) |
|
Standard Charge |
500mA,CCCV 50mA cut-off |
|
Quick Charge Current |
1500mA |
|
Max Continuous Discharge Current |
8A |
|
Cycle Life |
3C discharge,70% capacity,>1000 times |
|
Operating Temperature |
Charging, 0°C ~ 45°C |
|
Discharging, -20°C~60°C |
|
|
Storage Temperature |
-5°C~35°C |
|
Storage Humidity |
≤75%RH |
|
Appearance |
Without scratch,distorion,contamination, |
|
and leakage |
|
|
Standard environmental condition |
Temperature: 23±5°C |
|
Humidity: 45-75%RH |
|
|
Atmospheric Pressure :86-106KPA |


*** WARNING ***
All users must have appropriate understanding of lithium-ion batteries before purchase. Use caution when working with and using lithium-ion batteries as they are very sensitive to charging characteristics and may explode, burn, or cause a fire if misused or mishandled. Always charge in or on a fire-proof surface. Never leave batteries charging unattended. Buyer is responsible for any damage or injury caused by misuse or mishandling lithium-ion batteries and chargers. No express or implied guarantee of compatibility with any device can be made. Charge only with a smart charger designed for this specific type of lithium-ion battery. Do not mix and match old and new, used and unused batteries.
- DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
- MISUSING OR MISHANDLING LITHIUM-ION BATTERIES CAN POSE A SERIOUS RISK OF PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
- BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
- ONLY USE WITH PROPER CIRCUITRY IN A PROTECTED BATTERY PACK
- ONLY USE WITHIN MANUFACTURER LISTED SPECIFICATIONS
- DO NOT STORE LOOSE BATTERY IN A POCKET, PURSE ETC. - ALWAYS USE A PROTECTIVE CASE OR BOX
- KEEP AWAY from metal objects to prevent short circuiting
- DO NOT short circuit
- DO NOT use if wrapper or insulator is damaged or torn
- DO NOT use if damaged in any way
- DO NOT overcharge or over-discharge
- DO NOT modify, disassemble, puncture, cut, crush, or incinerate
- DO NOT expose to liquids or high temperatures
- DO NOT solder, spot weld only
- User must be familiar with handling lithium-ion batteries before purchase
- Usage of batteries is AT YOUR OWN RISK
- ALWAYS charge in or on a fire-proof surface and never leave charging batteries unattended.
