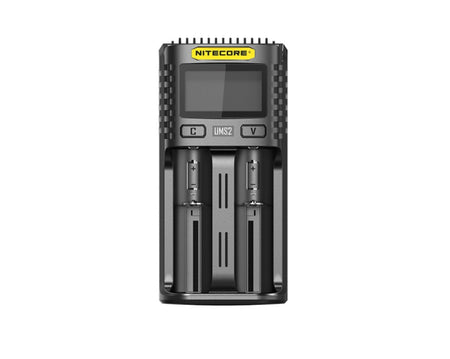

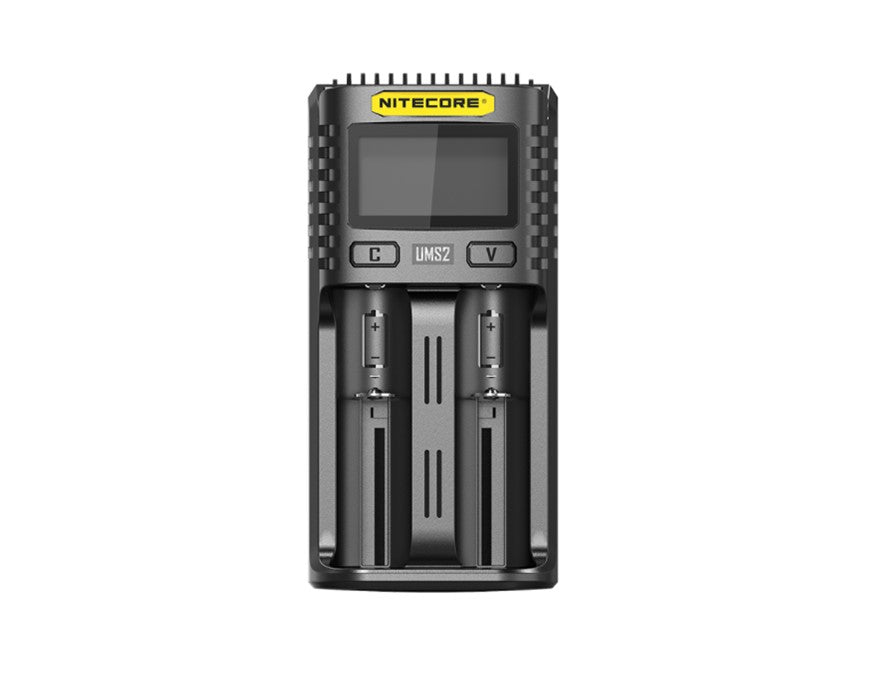

Nitecore UMS2 Intelligent USB Dual-Slot Charger
3599
Nitecore UMS2 Intelligent USB Dual-Slot Charger
3599

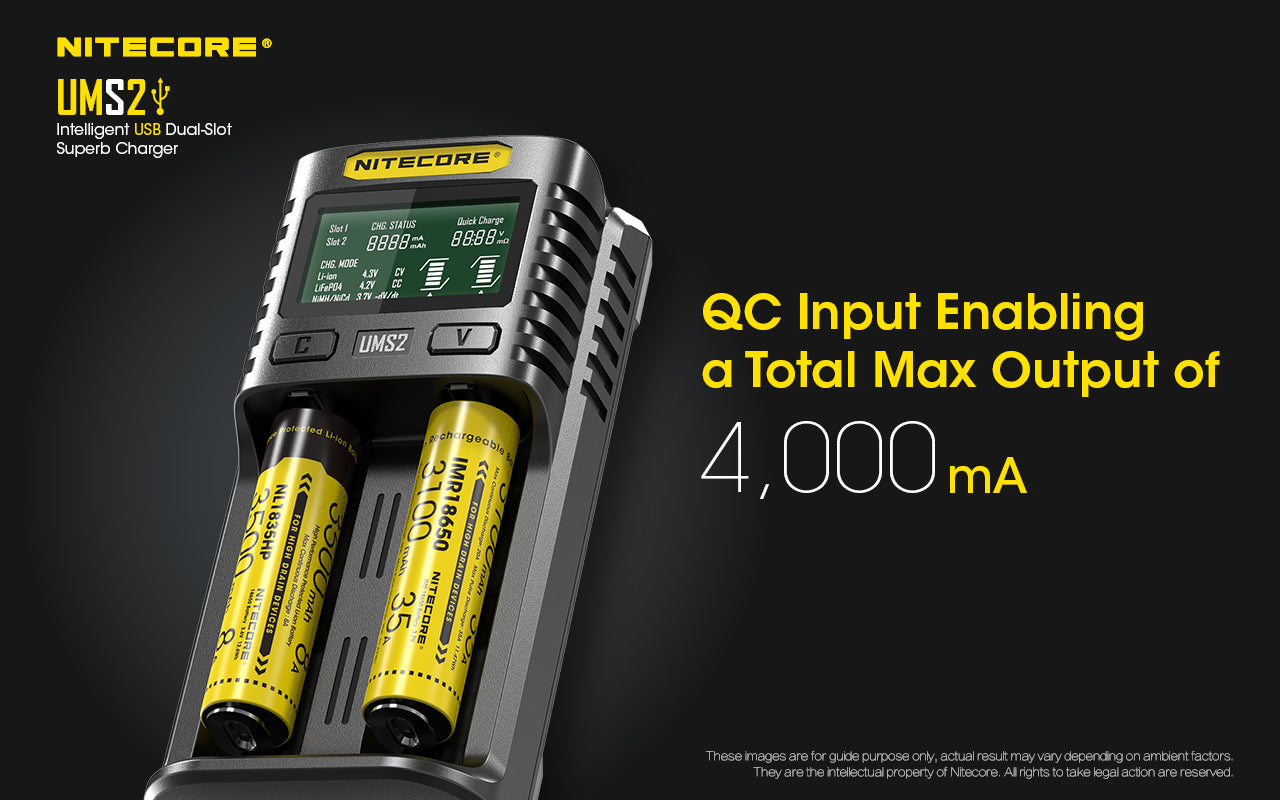

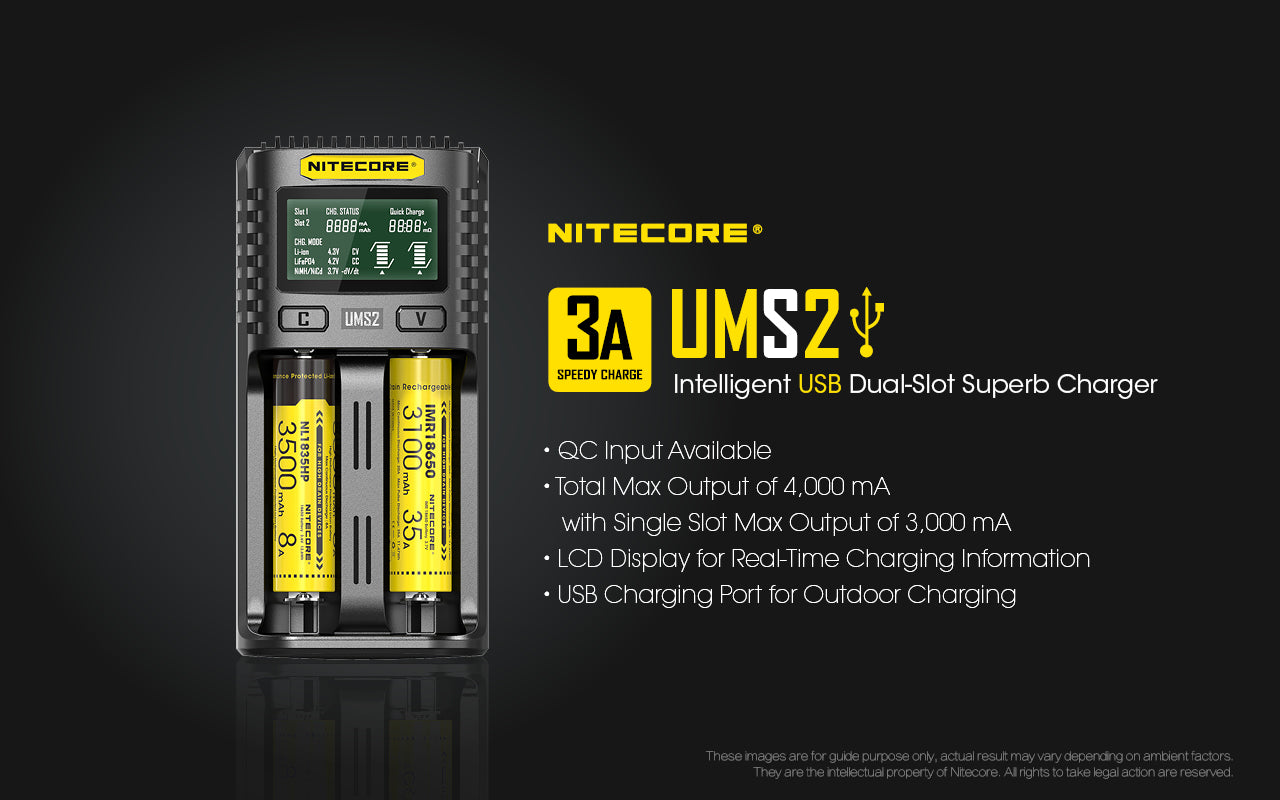

The NITECORE UMS2 Intelligent USB dual-slot charger designed to recharge your batteries fast, safe and efficiently. The UMS2 will reach a maximum total output of 4000mA when using a 2A output USB power adapter. When the charger is powered or connected to quick charge (QC) power adapter, the screen will show “Quick Charge” and the single slot will achieve a max output of 3000mA.

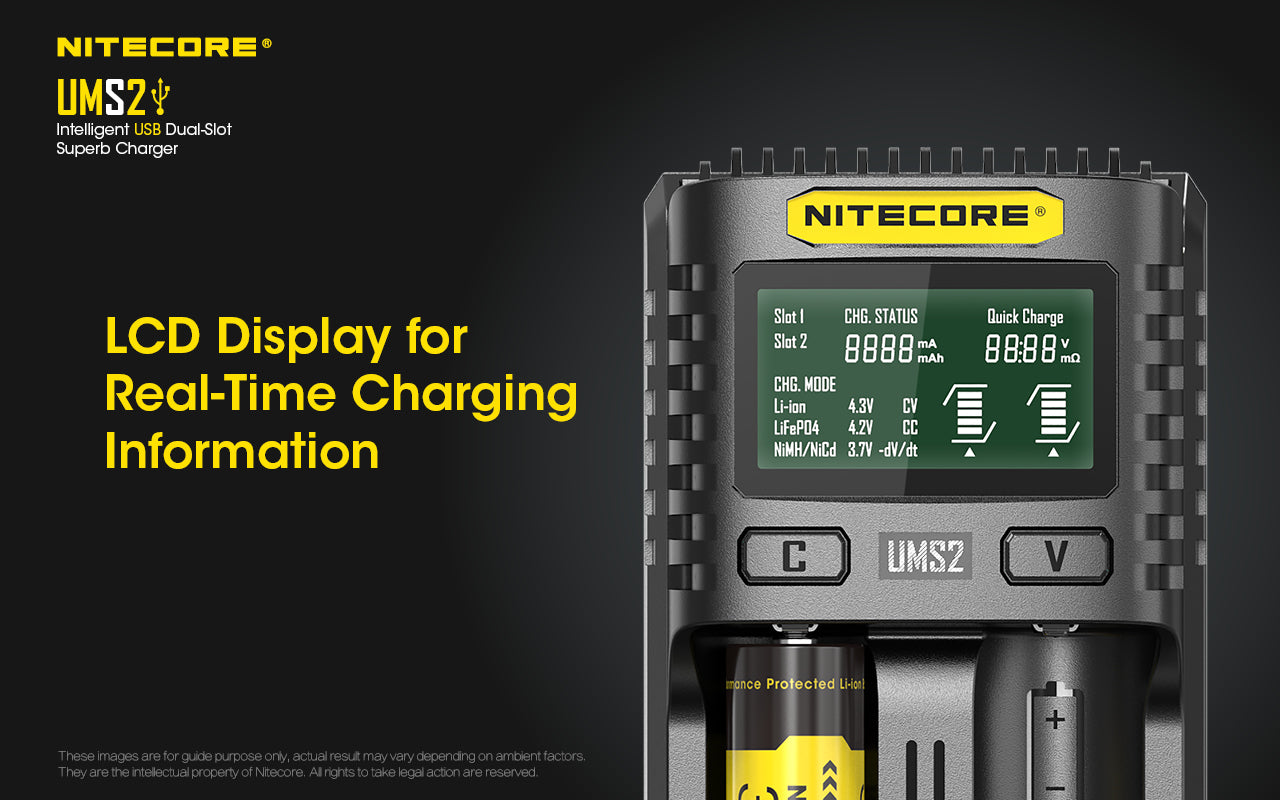

LCD Display with Real-time Charging Information

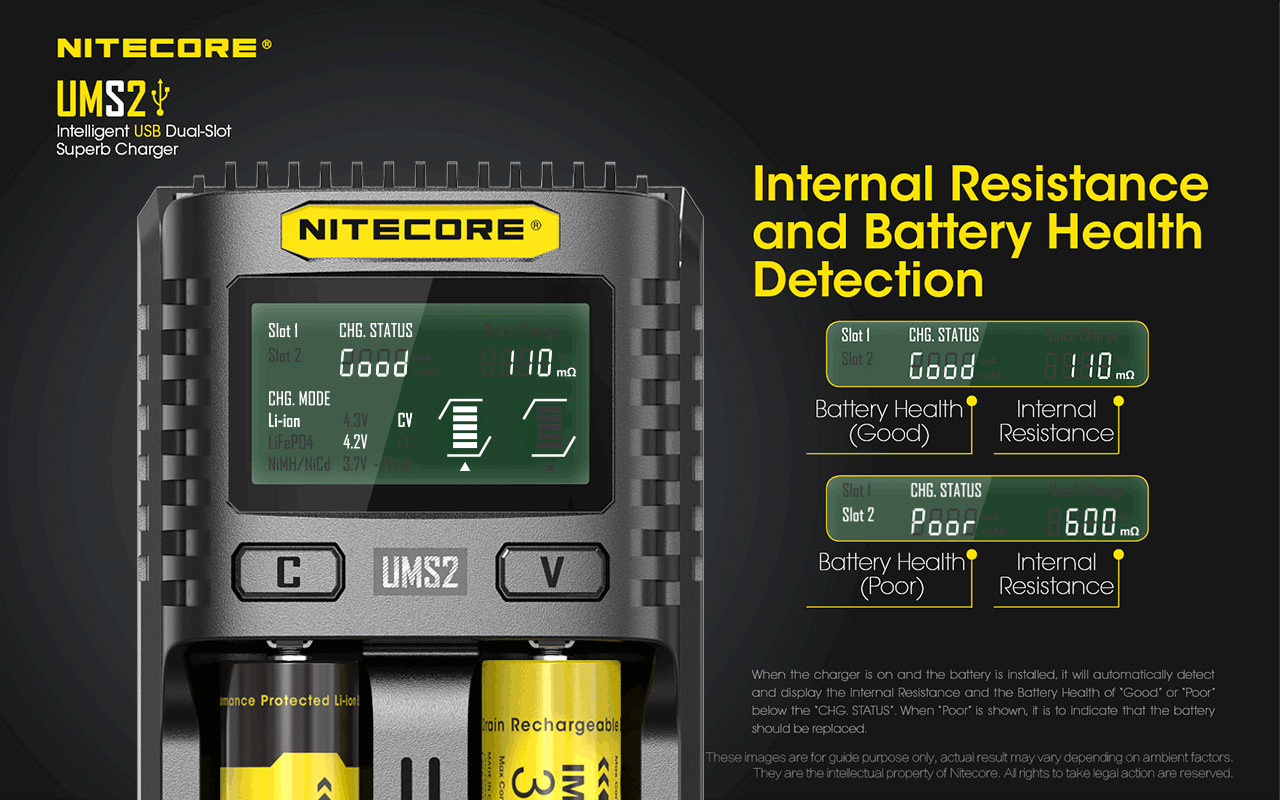

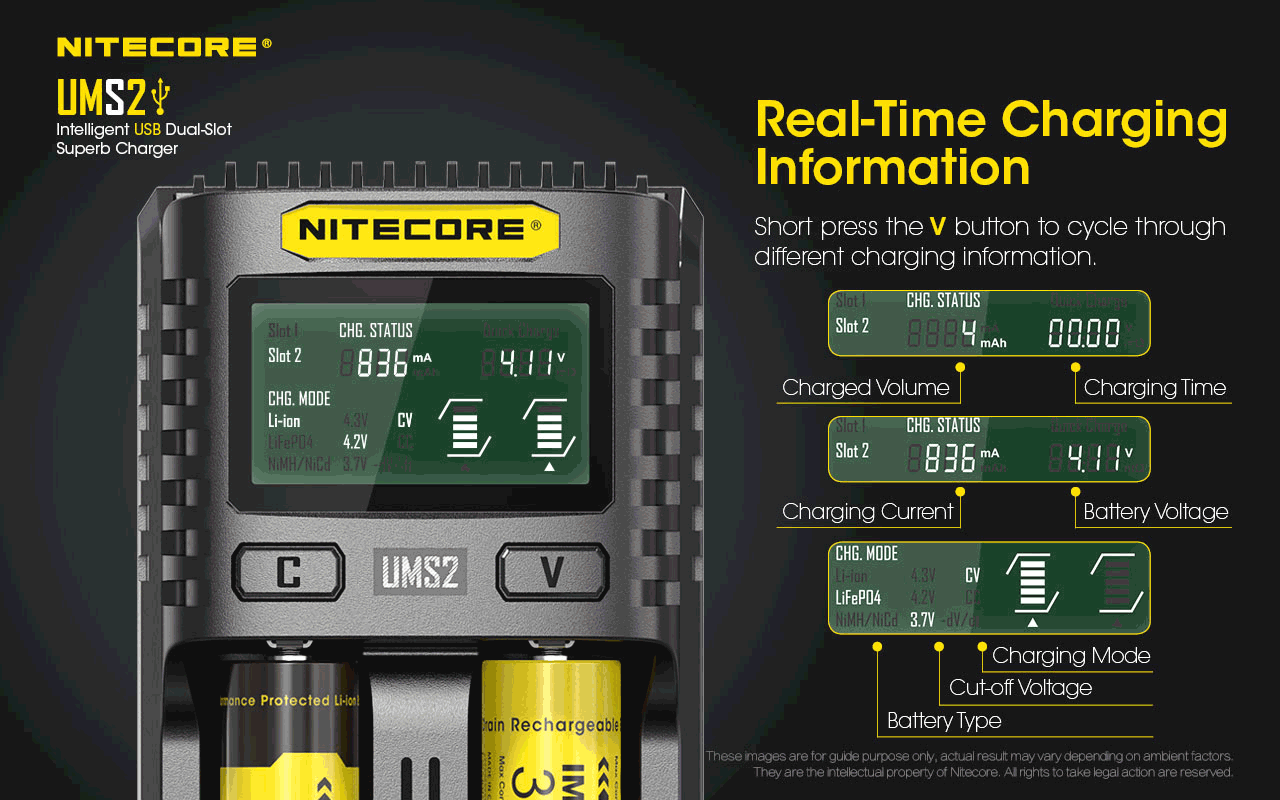

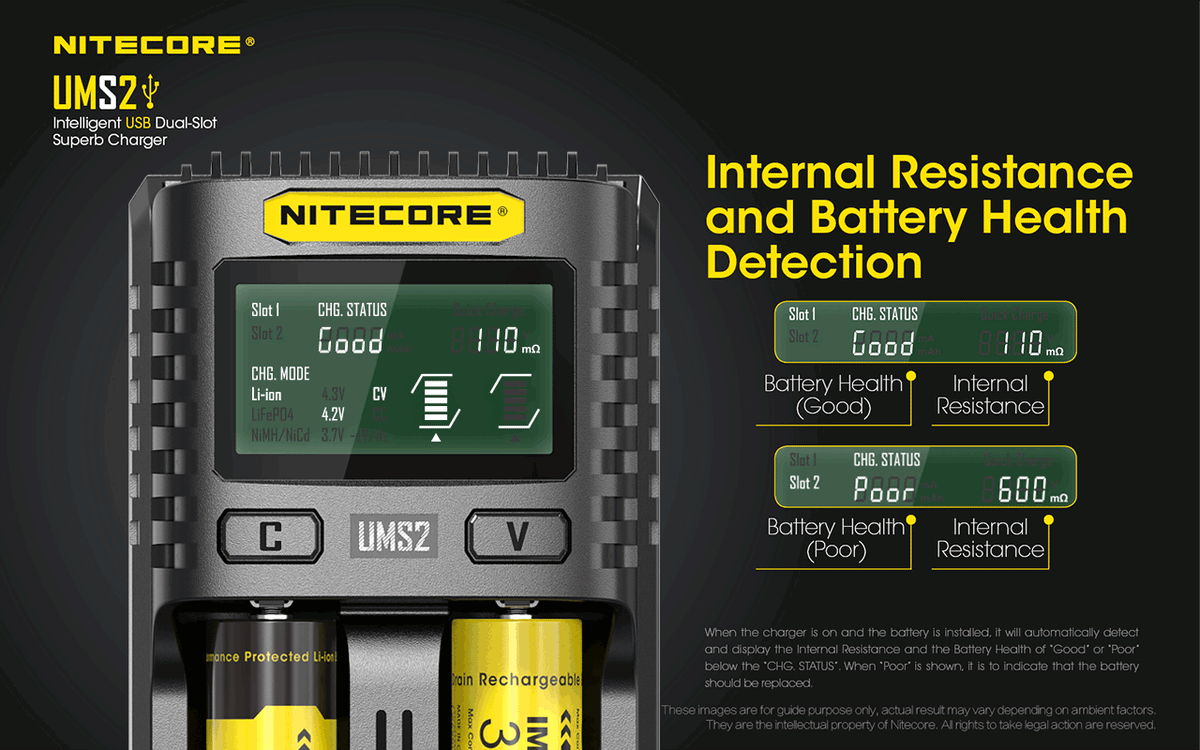

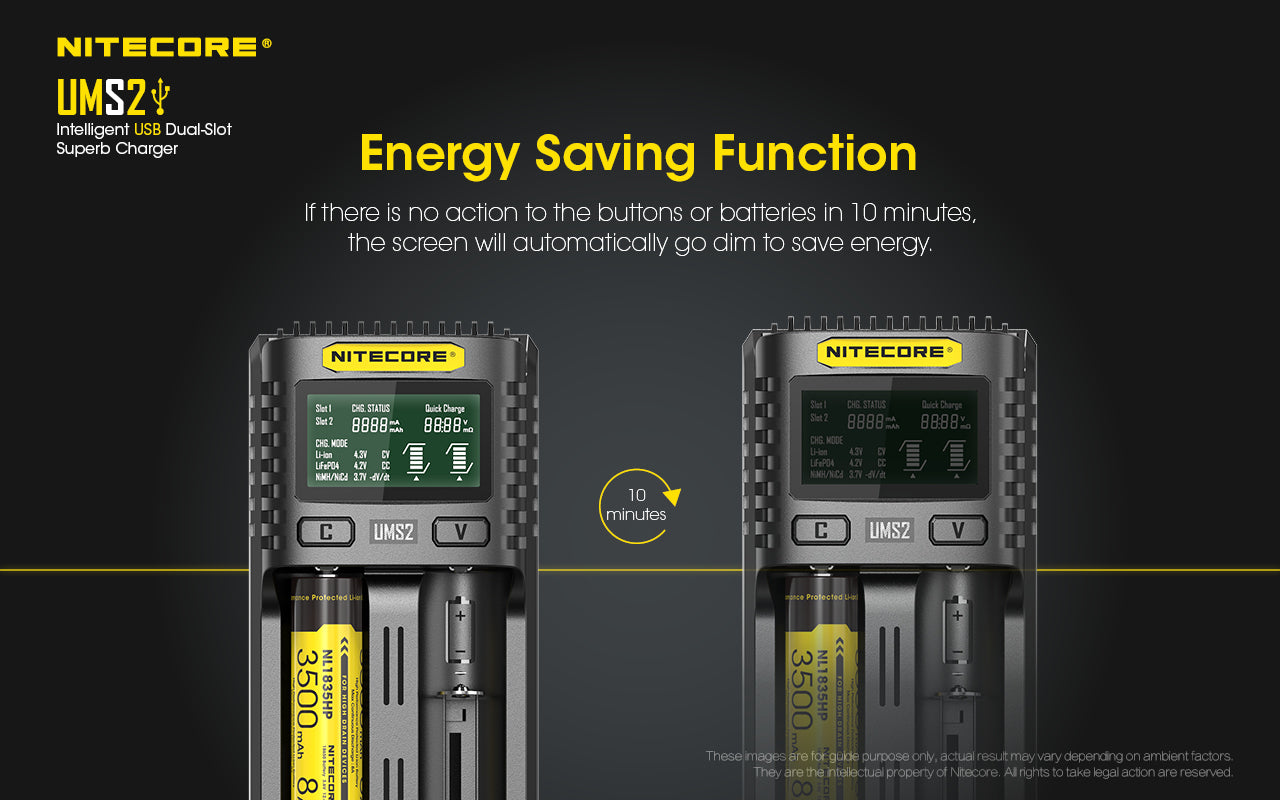

A brightly lit LCD display reports real information including battery health, charging time, charged volume, charging current, battery voltage and type, cut-off voltage and charging mode. The UMS2 offers an energy saving function that activates and dims the LCD display in 10 minutes, when there is no action to the buttons or batteries.
Intelligent USB Charging

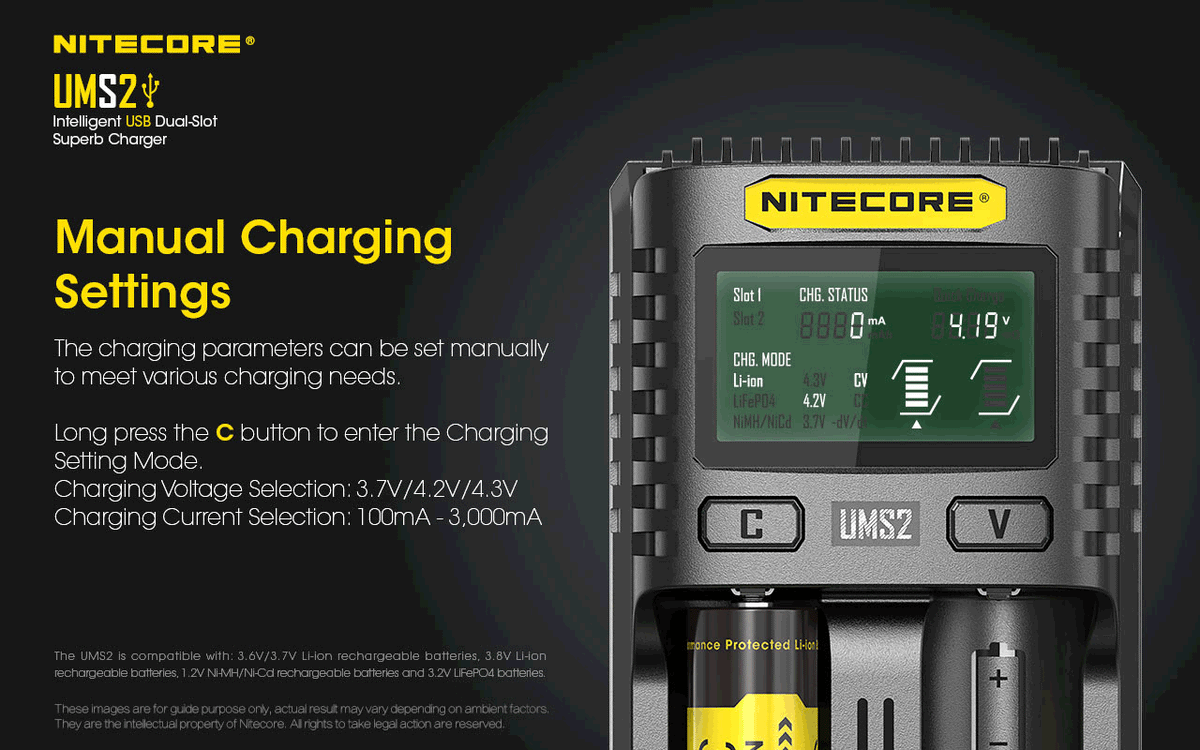

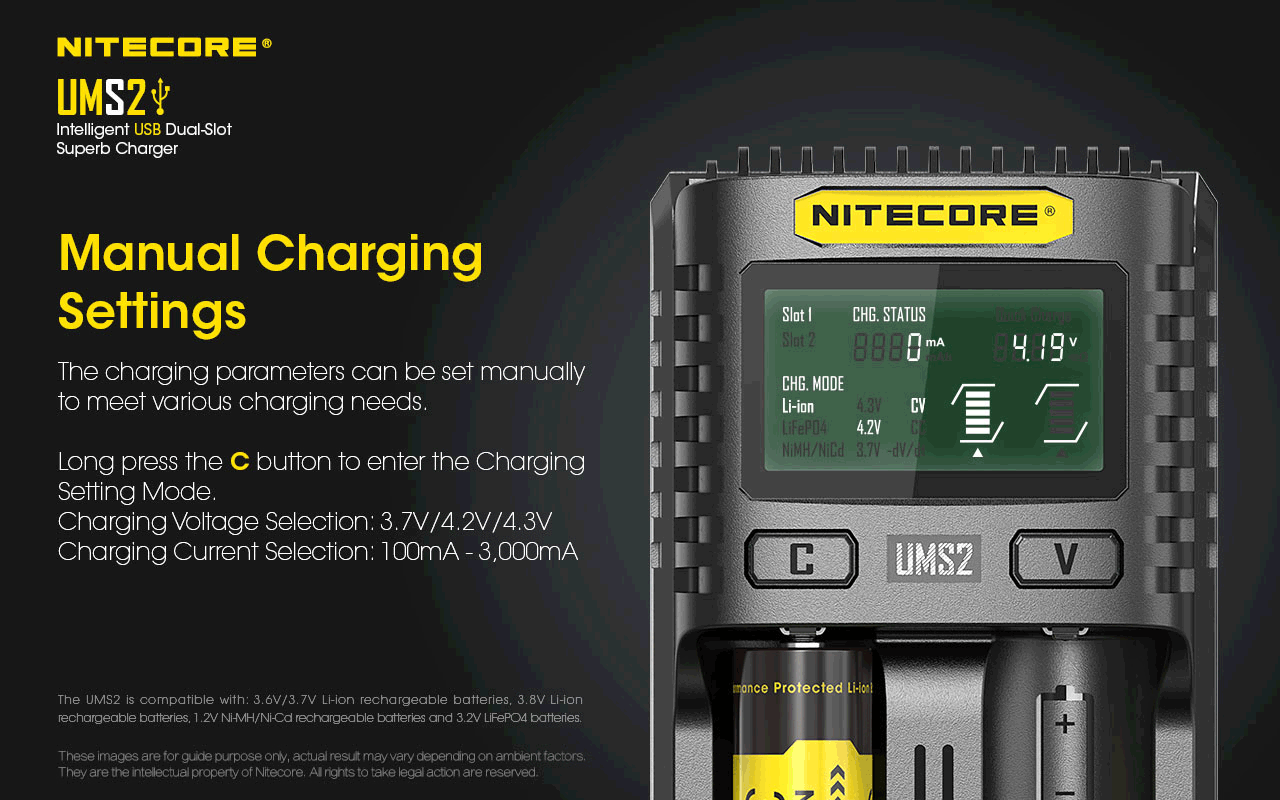

The UMS2’s intelligent charging technology automatically detects and applies the appropriate charging current/voltage while allows users to manually adjust the charging current/voltage for specialized battery types. The UMS2 supports various battery types (li-ion/imr/lifep04/ni-cd/ni-mh) and common battery sizes including (18650, 16340,14500).

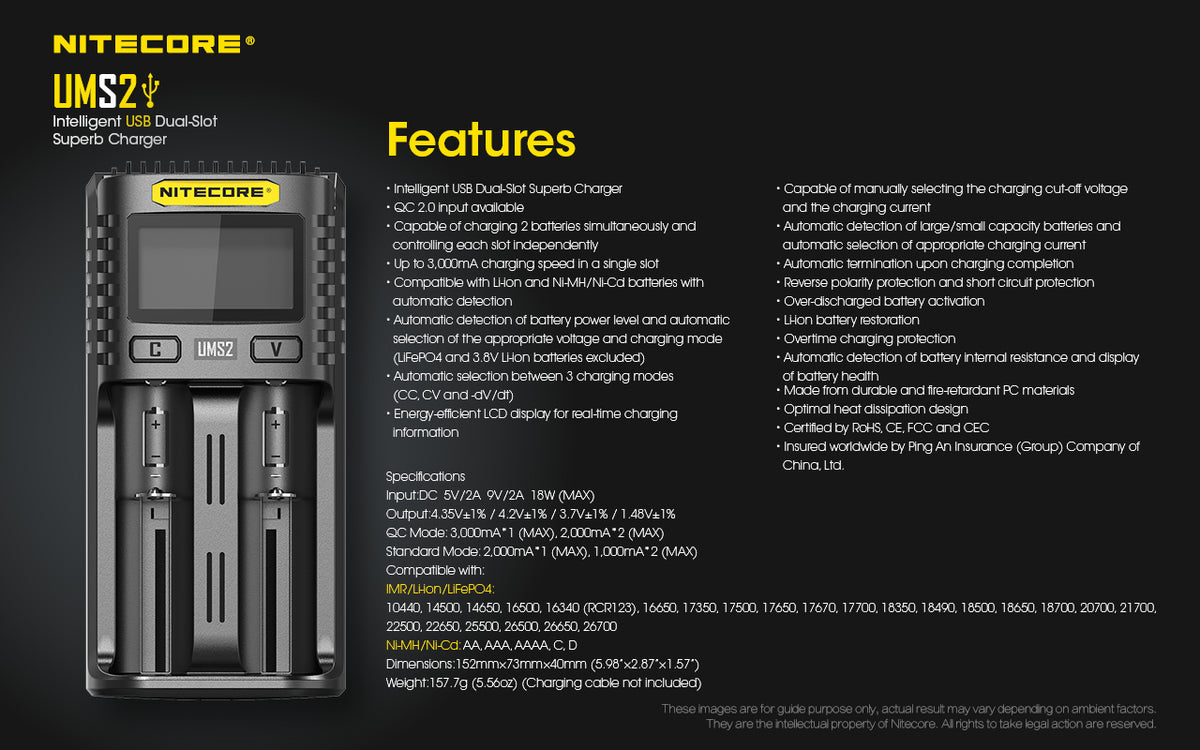

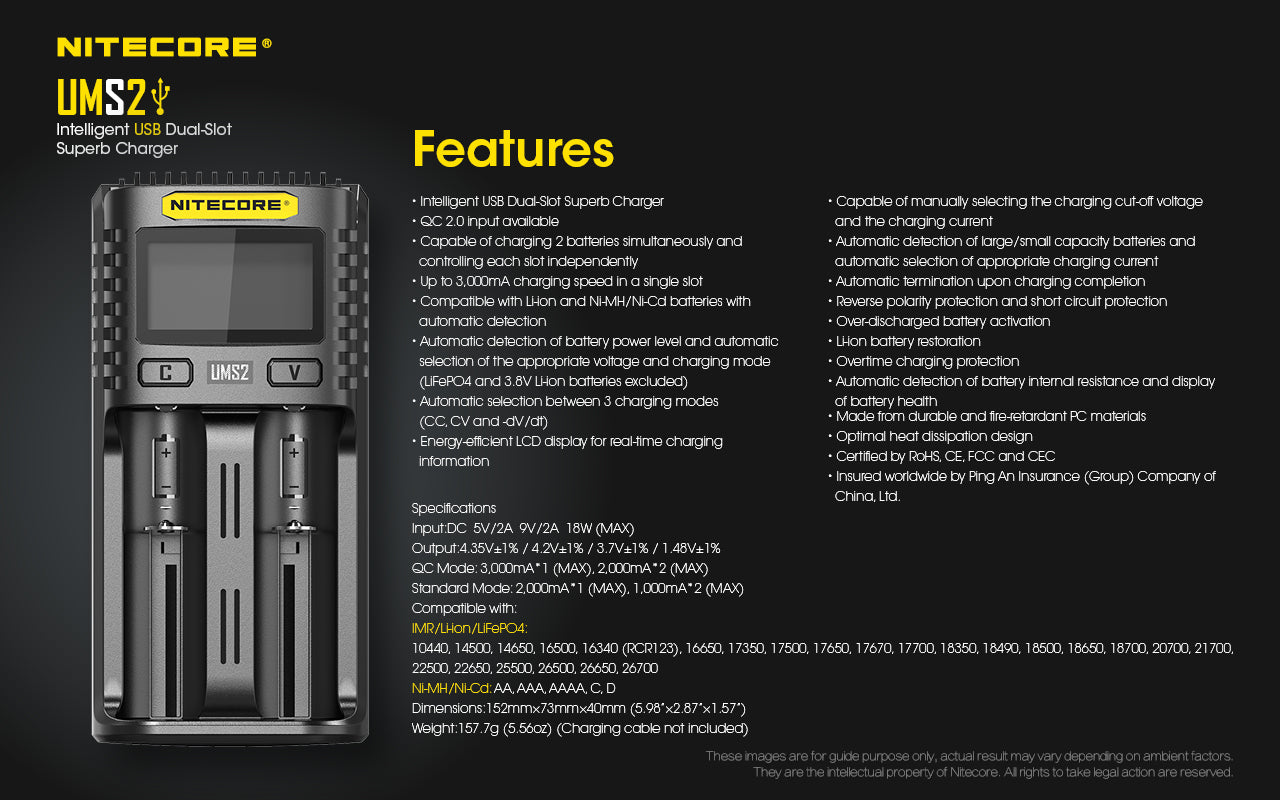

Features:- Capable of charging 2 batteries simultaneously & controlling each slot independently

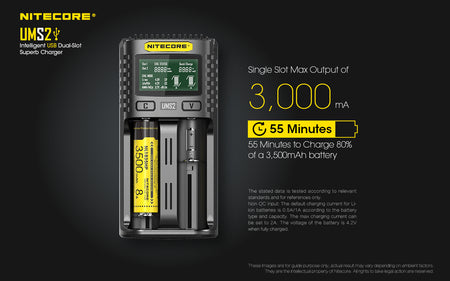

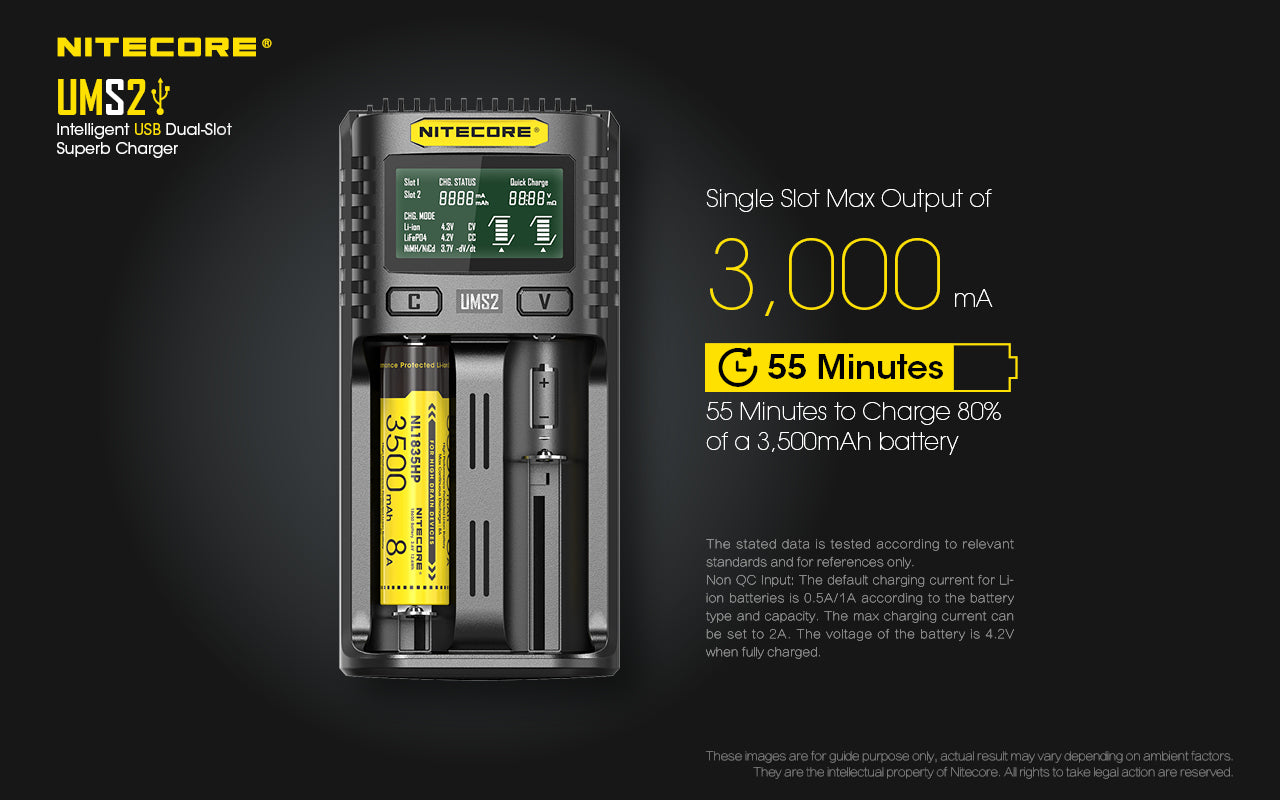

- Charging speed up to 3,000mA in a single slot

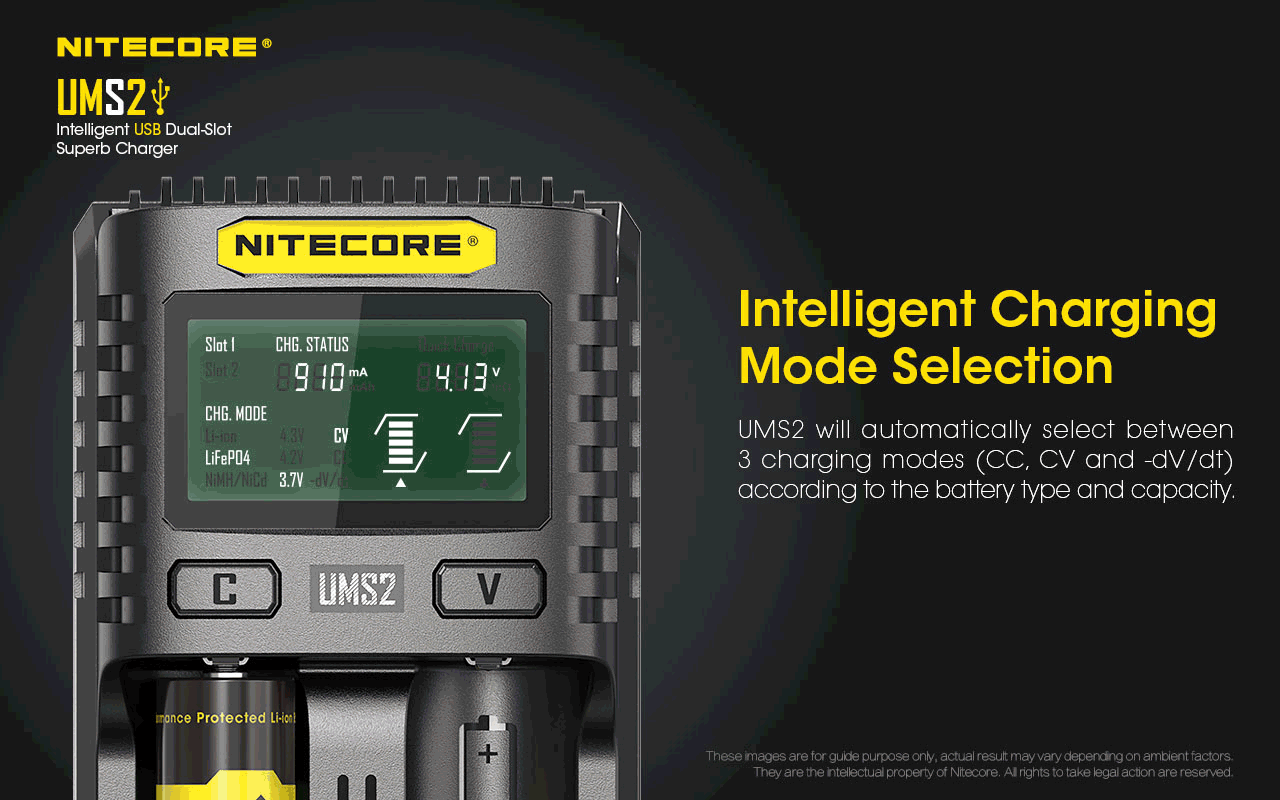

- Automatically detects battery power level and selects the appropriate voltage & charging mode
- LCD display shows real time charging information

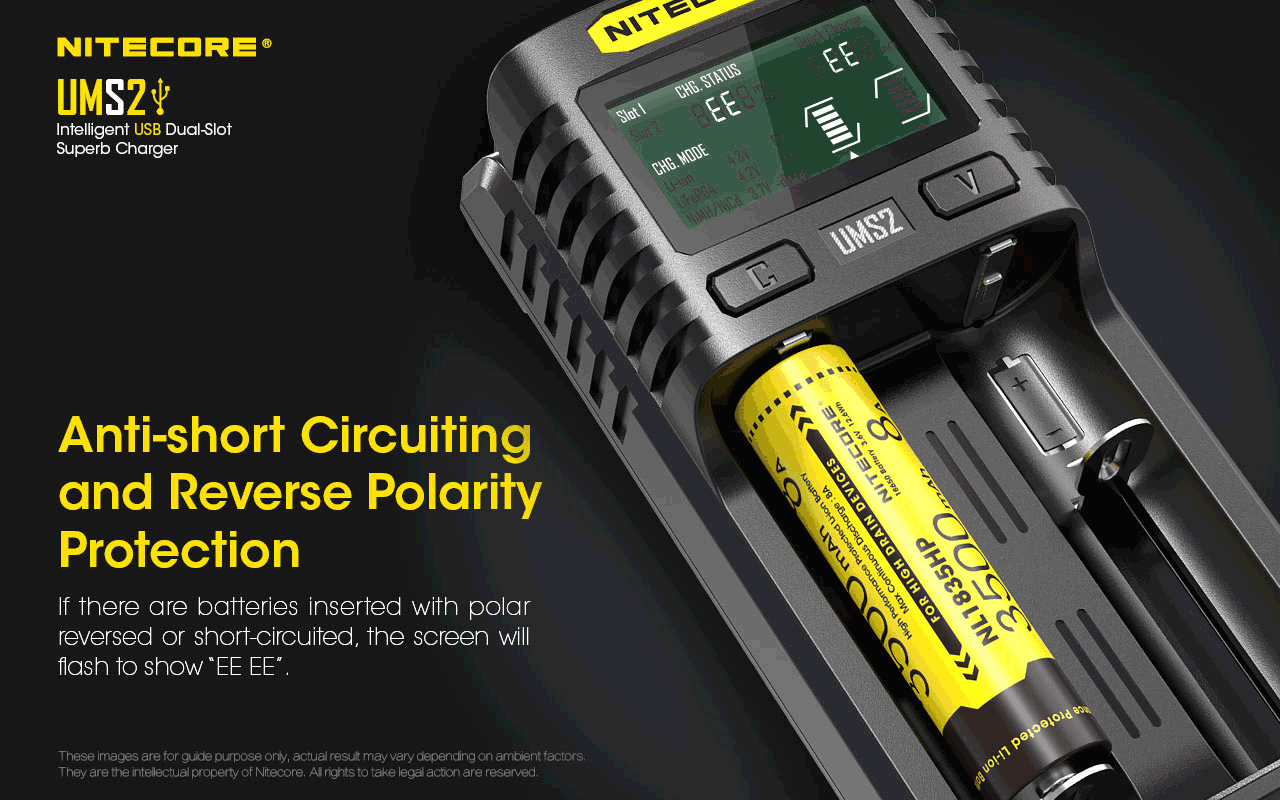

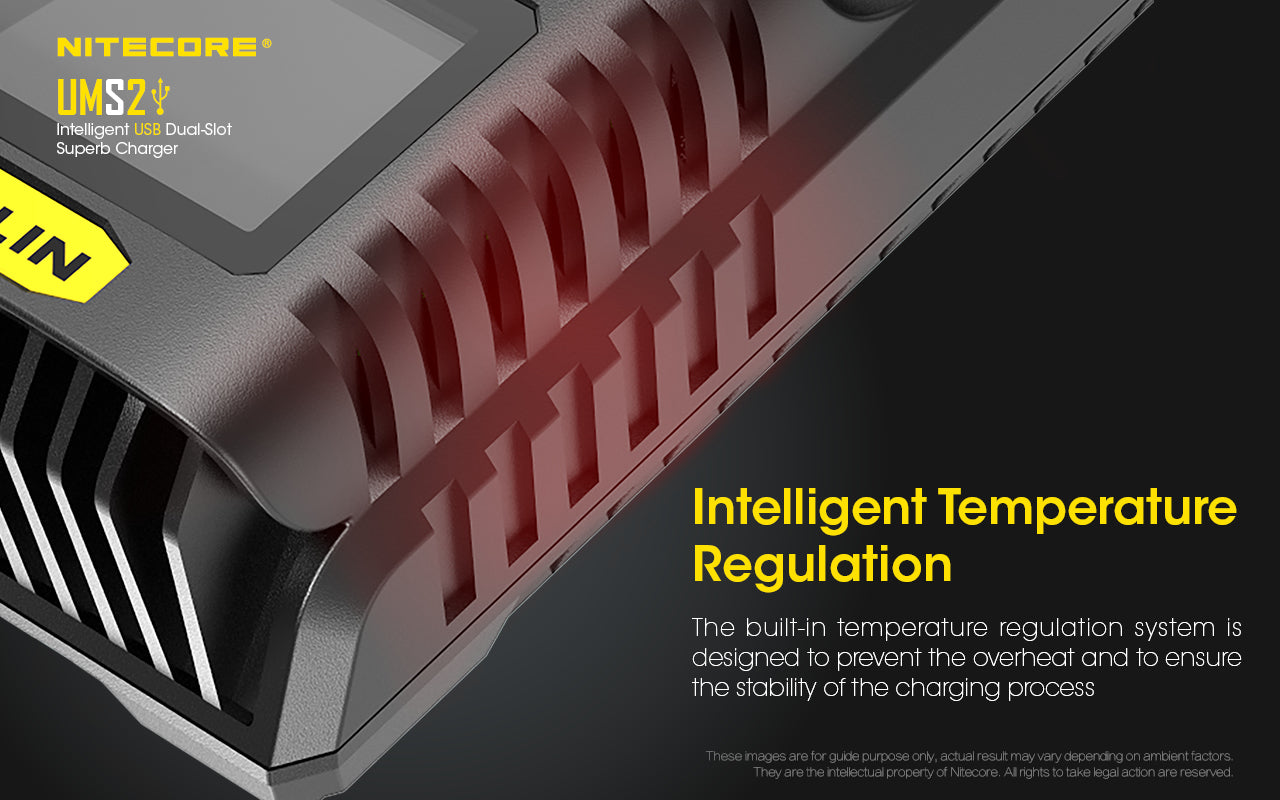

- Built in safety protections to prevent short circuits, overcharging, and improperly inserted batteries

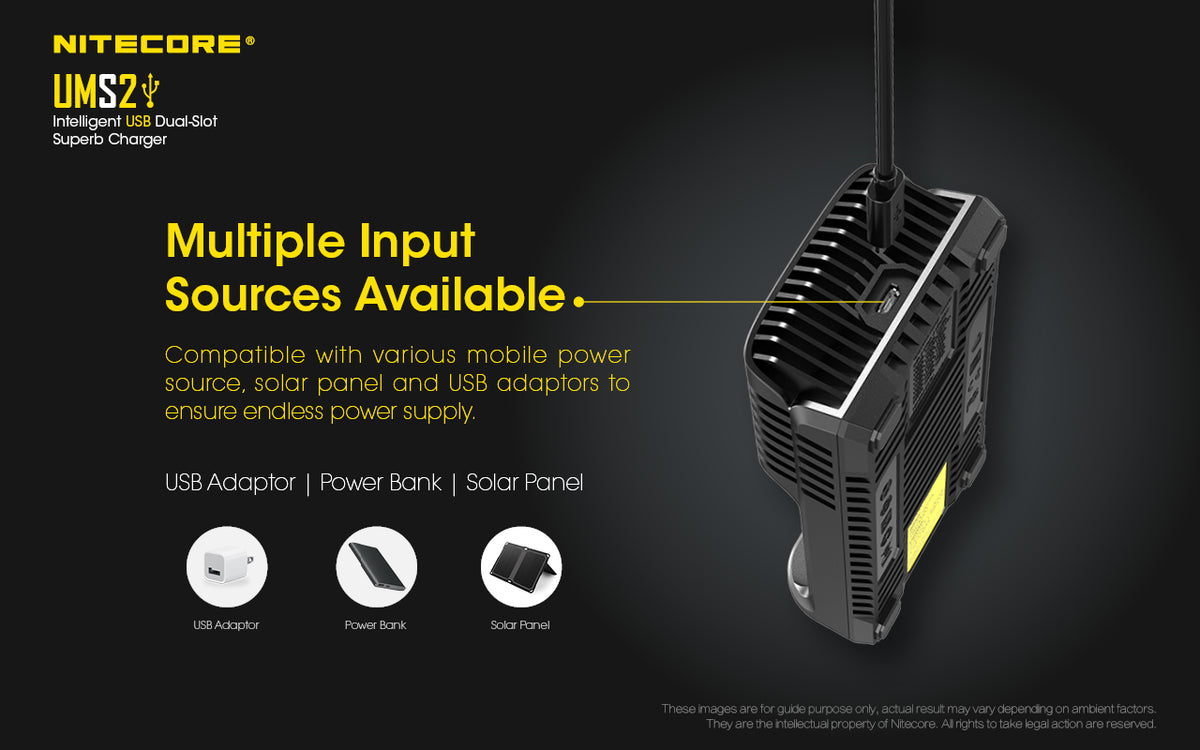

- Compatible with USB adapters, power banks, solar panels and more.
TECHNICAL SPECIFICATIONS:
| Input | DC 5V/2A 9V/2A / 18W(MAX) |
| Output | 4.35V±1% / 4.2V±1% / 3.7V±1% / 1.48V±1% |
| Output Current QC Mode | 3,000mA*1 (MAX) 2,000mA*2 (MAX) |
| Output Current Standard Mode | 2,000mA*1 (MAX) 1,000mA*2 (MAX) |
| Compatible Battery Types: IMR/Li-ion/LiFePO4 | 10440, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 17700, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22500, 22650, 25500, 26500, 26650, 26700 |
| Compatible Battery Types: Ni-MH/Ni-Cd | AA, AAA, AAAA, C, D |
| Dimensions | L-5.98"xW-2.87"xH-1.57" |
| Weight | 5.56oz |
*** WARNING ***
All users must have appropriate understanding of lithium-ion batteries before purchase. Use caution when working with and using lithium-ion batteries as they are very sensitive to charging characteristics and may explode, burn, or cause a fire if misused or mishandled. Always charge in or on a fire-proof surface. Never leave batteries charging unattended. Buyer is responsible for any damage or injury caused by misuse or mishandling lithium-ion batteries and chargers. No express or implied guarantee of compatibility with any device can be made. Charge only with a smart charger designed for this specific type of lithium-ion battery. Do not mix and match old and new, used and unused batteries.
- DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICE
- MISUSING OR MISHANDLING LITHIUM-ION BATTERIES CAN POSE A SERIOUS RISK OF PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
- BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
- ONLY USE WITH PROPER CIRCUITRY IN A PROTECTED BATTERY PACK
- ONLY USE WITHIN MANUFACTURER LISTED SPECIFICATIONS
- DO NOT STORE LOOSE BATTERY IN A POCKET, PURSE ETC. - ALWAYS USE A PROTECTIVE CASE OR BOX
- KEEP AWAY from metal objects to prevent short circuiting
- DO NOT short circuit
- DO NOT use if wrapper or insulator is damaged or torn
- DO NOT use if damaged in any way
- DO NOT overcharge or over-discharge
- DO NOT modify, disassemble, puncture, cut, crush, or incinerate
- DO NOT expose to liquids or high temperatures
- DO NOT solder, spot weld only
- User must be familiar with handling lithium-ion batteries before purchase
- Usage of batteries is AT YOUR OWN RISK
- ALWAYS charge in or on a fire-proof surface and never leave charging batteries unattended
