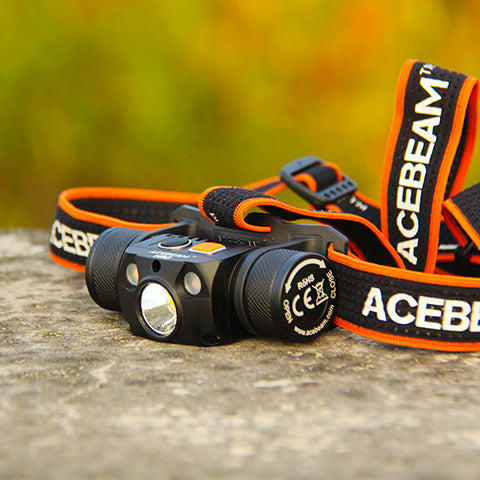

The AceBeam H30 is one of the brightest LED headlamps on the market driven by a single 21700 battery. Suitable for mining, exploration and outdoor search, the secondary LED options of Red+Green, Red+UV, and Red+ CRI are available to enrich your application scenarios. Red LED preserves your night vision; UV for police and crime scene investigators; CRI light has the ability to present the original color of the light source to achieve better lighting effects.

LED Option Available:


Features:

LED 1:
1 x Cree XHP70.2 LED with lifespan of 50,000 hours
1 x CREE XPE2-R2 630nm Red light
1 x CREE XPE2-G3 530nm Green light

Output Mode & Runtime:
Ultra-Low: 3 lms; 200 hours; 5 meters; 6cd
Low: 120 lms; 23.7 hours; 40 meters; 410cd
Medium: 380 lms; 7.5 hours; 54 meters; 740cd
High: 1100 lms; 2.9 hours; 89 meters; 2000cd
Turbo: 2200 lms - 1000 lms; 5.5 minutes + 2.4 hours; 118 meters; 3500cd
Turbo-Max: 4000 lms - 1000 lms; 1.5 minutes + 2.5 hours; 171 meters; 7300cd
SOS: 50 lms; 72 hours;
Red light: 50 lms; 10 hours; 15 meters; 60cd
Green light: 70 lms; 11 hours; 17 meters; 70cd

Max 4000 lumens powered by included 1x 21700 battery (IMR21700NP-510A)
Max runtime: 200 hours
Max beam distance: 171 m
Peak beam intensity: 7300 cd

Low Voltage Indication:
Ultra-Low: 3V     Low: 3V     Medium: 3V
High:         3V     Turbo: 3.2V     Turbo-max.: 3.2V
SOS:          3V     Red light: 3V     Green light: 3V


The H30 will be turned off when the voltage at:
Ultra Low: 2.7V     Low: 2.7V     Medium: 2.7V
High: 2.7V     Turbo: 2.9V     Turbo-max.: 2.9V
SOS: 2.7V     Red light: 2.7V     Green light: 2.7V

  • Charging current: 2A
  • Discharge current: 2A
  • Working voltage: 3V to 8.4V
  • Impact resistance: 1 meter
  • Waterproof: IPX68 (2 meters submersible)
  • Size:89.4mm(length)x40.8mm(head diameter)x29mm(tube diameter)
  • Weight: 80g excluding battery; 151.5g including 1x21700 battery (IMR21700NP-510A); headband with silicone holder 38.8g

Specifications:

  • Multi-output Rechargeable Headlamp
  • Color temperature: 6500K for option
  • Powered by 1 x 21700 5100mAh rechargeable Li-ion (Battery Included), 1 x 18650 battery compatibility
  • Battery discharge temperature range: 0℃~70℃

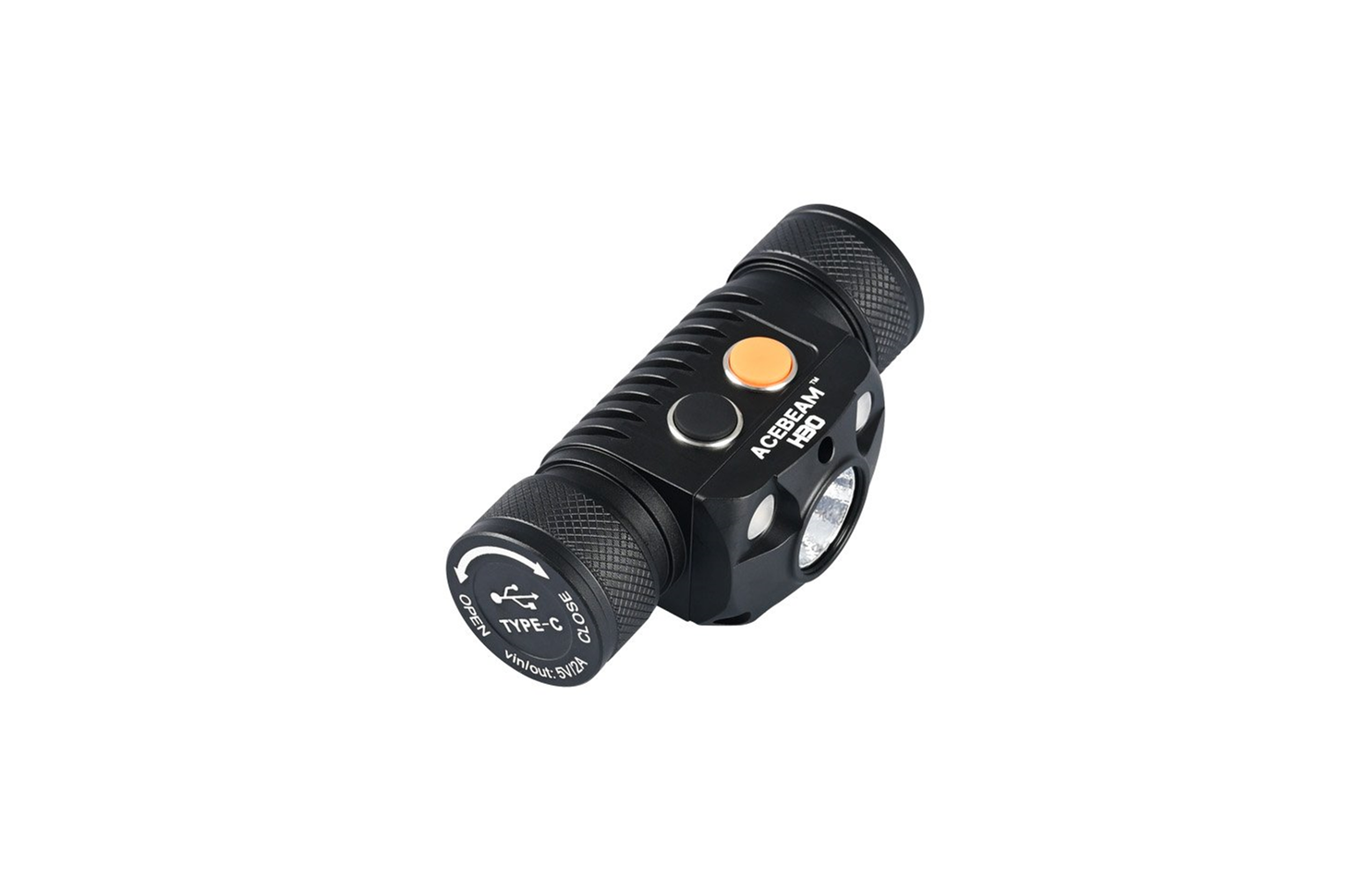

  • Suits multiple scenarios with a USB-C charging port-3 times faster than regular USB
  • Two way USB-C cable capable of charging phones, tablets and more as power bank
  • Red and Green light for nighttime illumination and alerting

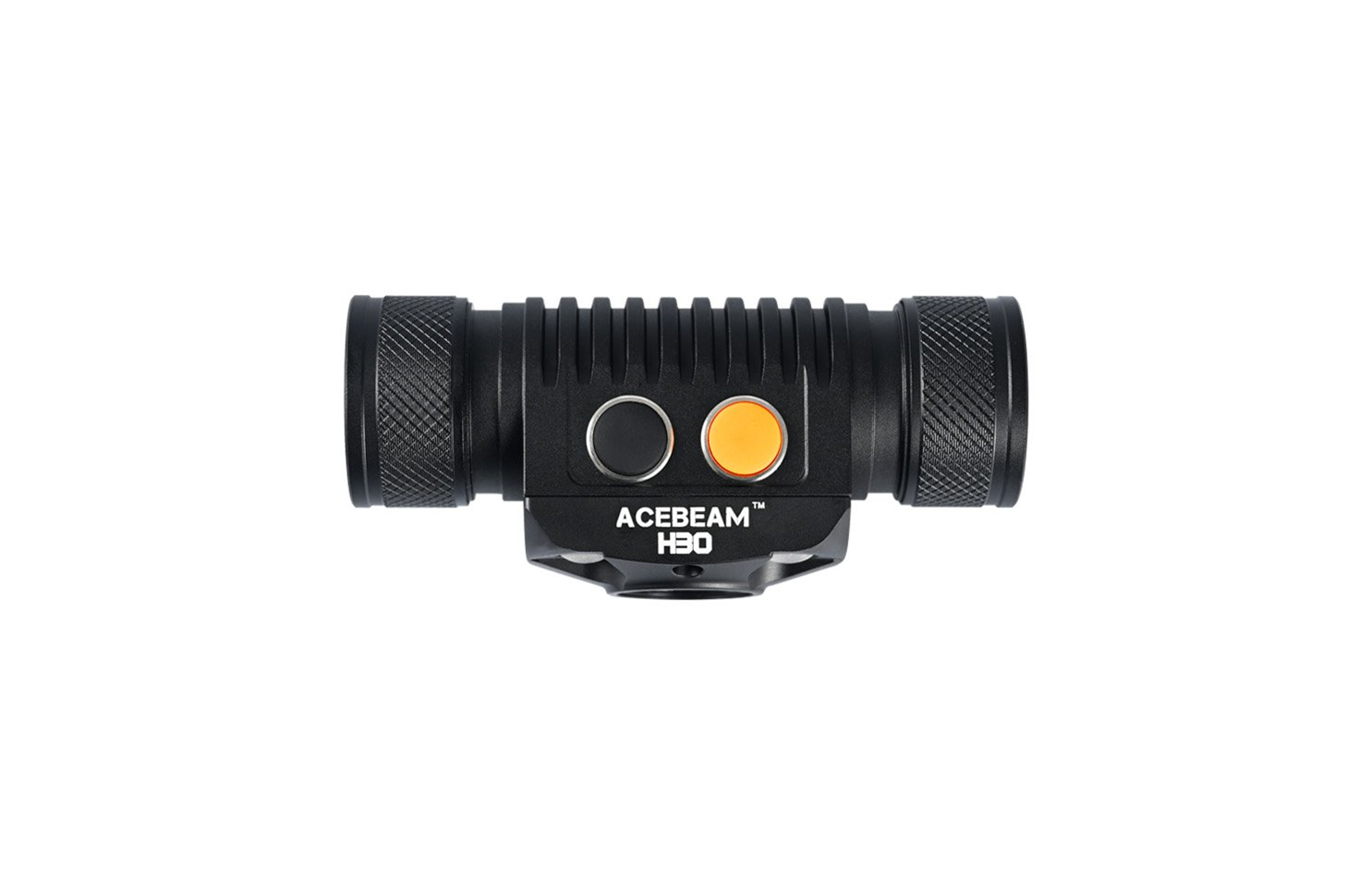

  • Dual switches for all easy operation
  • Multi-color LED for options
  • 6 brightness levels option and Red SOS special mode
  • Reflective headband design with high elasticity and sweat channels
  • Made of durable aerospace-grade aluminum alloy
  • Premium type Ⅲ hard-anodized anti-abrasive finish
  • Highly polished smooth reflector creates max throw
  • All circuitry contact points are gold-plated, providing better conductivity and superior durability
  • Comfortable chafe-free and breathable nylon headband with the silicone sweat diverting strip, while preventing sliding of the headband
  • Built-in intelligent temperature controller is used and adjusted brightness according to work status and temperature
  • Lockout to prevent accidental activation
  • Toughened ultra-clear glass lens with anti-reflective coating
  • Low-voltage warning reminds when battery charging is needed
  • Integrated Precision Digital Optics Technology provides extreme reflector performance
  • Automatic temperature regulation allows the light to regulate its output and adapt to the ambient environment, therefore maintaining optimal performance.

*** Flashlight Transport Warning ***
Please remember to turn off light and stick film insulation between battery and switch during transportation.

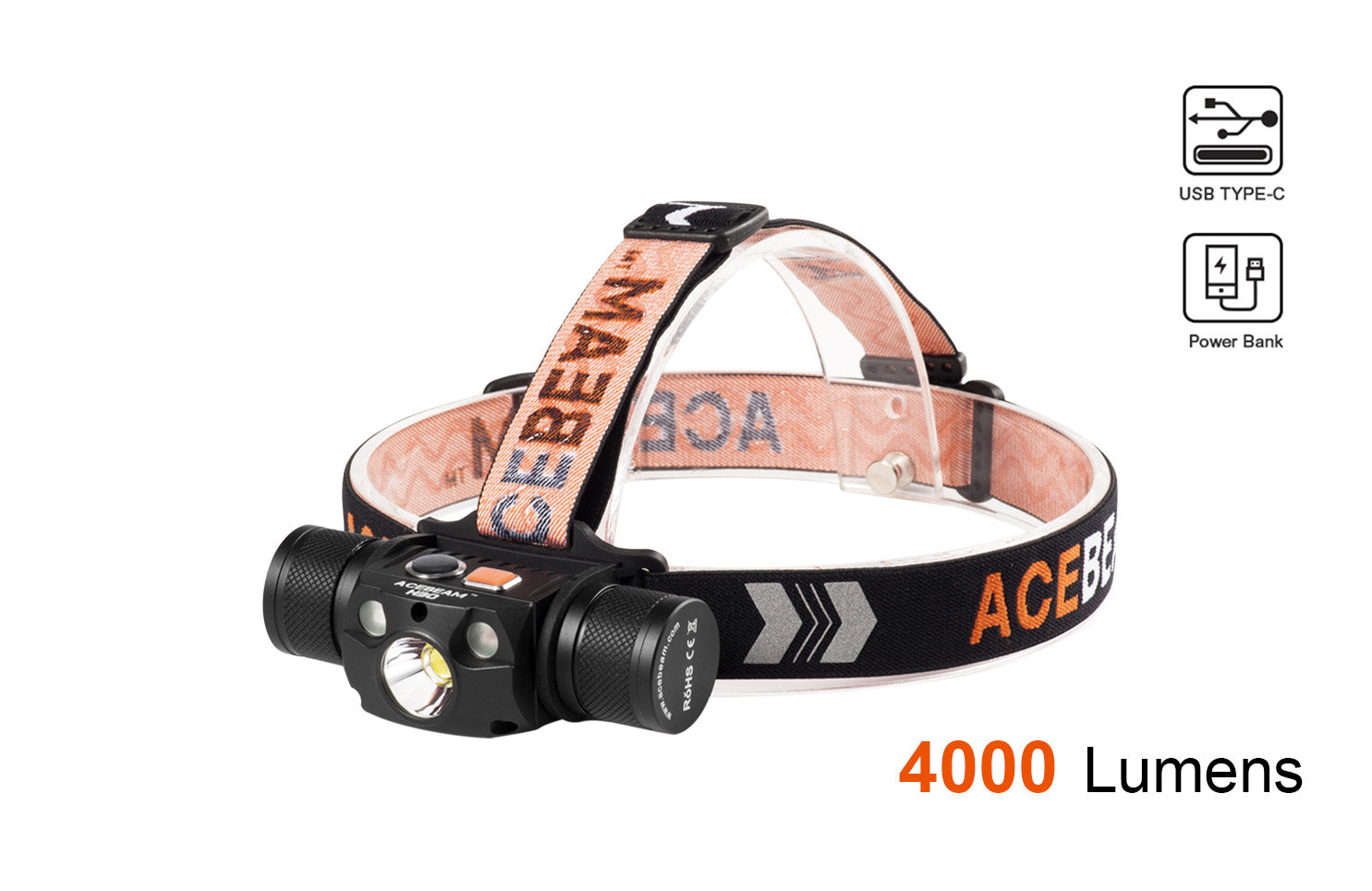

Acebeam H30 Headlamp Cool White 6500K +Two Auxiliary Red + Green
