Protected vs. Unprotected Lithium-Ion Cells: An Engineering Perspective

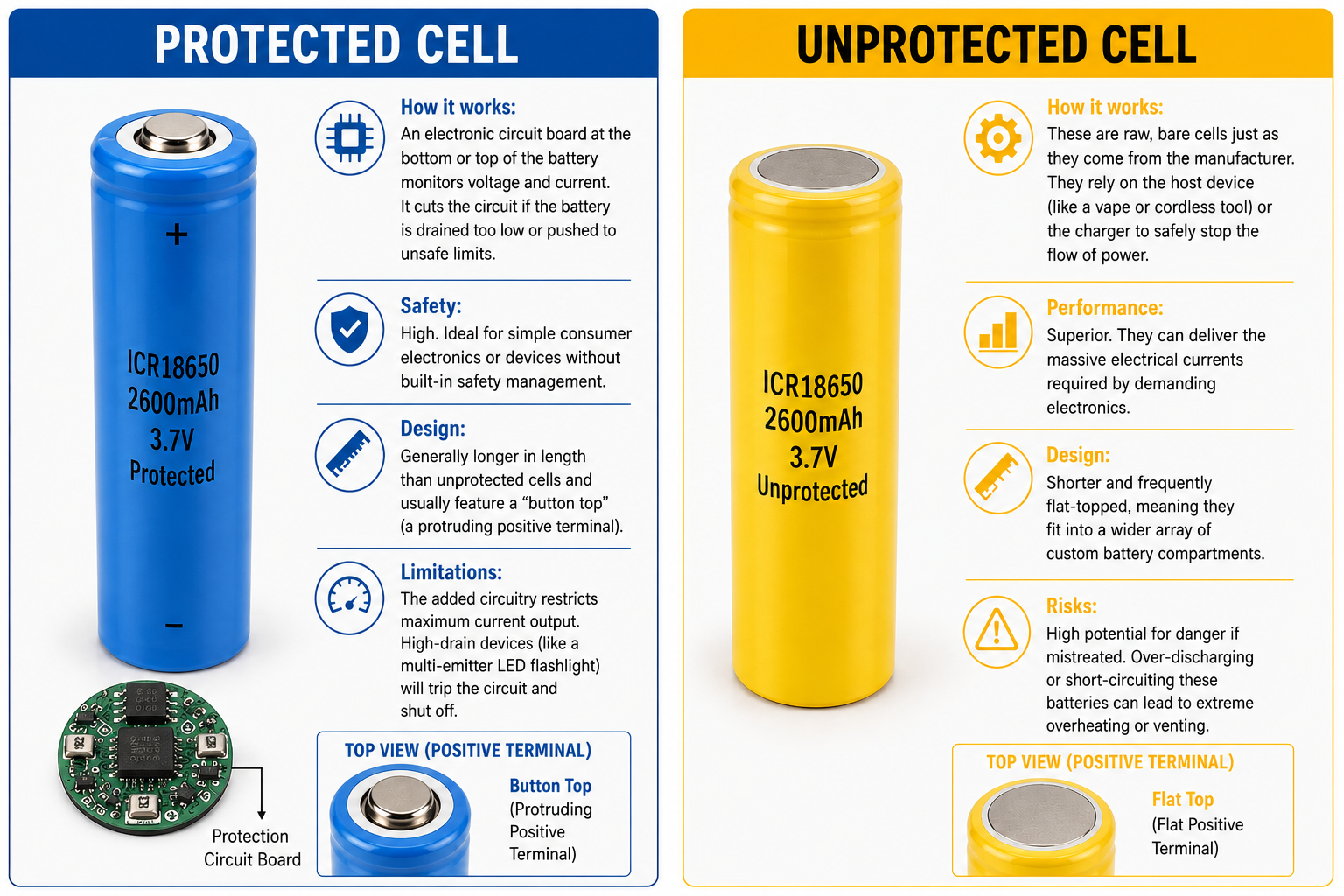

The infographic compares two physically similar but functionally different lithium-ion battery architectures: protected cells and unprotected cells. While both contain the same underlying electrochemical cell, the addition (or absence) of an electronic protection circuit significantly affects safety, performance, compatibility, and intended applications.


Understanding the Core Cell

At their foundation, both batteries contain the same cylindrical lithium-ion cell (such as an 18650, 21700, or 26650).

The cell itself consists of:

  • Cathode (typically NMC, NCA, or similar chemistry)
  • Anode (graphite)
  • Separator
  • Electrolyte
  • Current collectors
  • Safety vent

The electrochemical characteristics—including capacity (mAh), nominal voltage, and energy density—are primarily determined by the cell manufacturer.

The distinction between "protected" and "unprotected" lies not in the chemistry but in the addition of external electronic safeguards.


Protected Cells

Battery Management at the Cell Level

A protected cell incorporates a miniature protection circuit module (PCM/PCB) attached to the battery.

This protection system functions as a simplified Battery Management System (BMS) designed for a single cell.

The circuit continuously monitors:

  • Cell voltage
  • Charge voltage
  • Discharge voltage
  • Current draw
  • Short-circuit conditions

When operating parameters move outside predefined limits, MOSFET switches within the protection circuit disconnect the cell.


Typical Protection Thresholds

A protection board typically disconnects the battery under conditions such as:

Event Approximate Threshold
Overcharge 4.25–4.35V
Over-discharge 2.3–2.8V
Over-current Manufacturer dependent
Short circuit Immediate disconnect

These thresholds prevent the most common causes of lithium-ion degradation and failure.


Why Over-Discharge Matters

One of the most misunderstood battery failure mechanisms is over-discharge.

When lithium-ion cells fall below their minimum safe voltage:

  • Copper dissolution can occur inside the cell
  • Internal resistance rises
  • Capacity permanently decreases
  • Internal short circuits become more likely during recharging

A protected cell prevents this condition by disconnecting the load before irreversible damage occurs.


Current Limitation Characteristics

The protection circuit itself becomes a bottleneck.

The MOSFETs and PCB traces impose current limitations.

For example:

A high-capacity protected 18650 may support:

  • 5A
  • 8A
  • 10A continuous discharge

Meanwhile, the underlying cell may be capable of:

  • 20A
  • 30A
  • 40A discharge rates

As a result, the protection circuit often becomes the limiting factor rather than the cell chemistry itself.

This is why protected cells are uncommon in high-performance lighting systems.


Physical Characteristics

The infographic correctly shows a button-top configuration.

Protection circuitry requires:

  • PCB board
  • Additional wiring strip
  • Insulating layers
  • Extended positive terminal

Consequently:

Standard Unprotected 18650

  • Length ≈ 65.0 mm

Protected 18650

  • Length ≈ 68–71 mm

This dimensional difference frequently causes fitment issues in modern flashlights designed around precise battery tolerances.


Unprotected Cells

Direct Access to Cell Capability

An unprotected cell is the manufacturer's original product without any added electronics.

The user or device has direct electrical access to the cell.

Examples include cells from:

  • Vapcell
  • Samsung SDI
  • LG Energy Solution
  • Murata Manufacturing

These cells represent the benchmark products used by engineers and OEMs.


High-Drain Performance

The absence of protection circuitry allows the cell to deliver its full rated current.

Examples:

Cell Continuous Current Rating
Vapcell K25 20A/35A
Molicel P45B 45A
Samsung 30T 35A
Samsung 40T 35A

Modern enthusiast flashlights routinely demand:

  • 20A–40A bursts
  • Turbo modes exceeding 10,000 lumens
  • Multiple emitters operating simultaneously

A protection circuit would frequently trip under these loads.


Voltage Sag and Internal Resistance

Performance-oriented users often evaluate batteries using:

Internal Resistance (IR)

Lower resistance produces:

  • Less voltage sag
  • Lower heat generation
  • Higher efficiency

Voltage sag becomes particularly important in:

  • FET-driven flashlights
  • Power tools
  • RC applications
  • E-bike systems

Since unprotected cells eliminate additional PCB resistance, they generally exhibit superior electrical performance.


Safety Considerations

The infographic highlights the primary tradeoff:

Protected Cell

Safety is engineered into the battery.

Protection occurs regardless of the device.

Failure modes are reduced through electronic intervention.


Unprotected Cell

Safety is delegated elsewhere.

The system depends on:

  • Smart chargers
  • Battery management systems
  • Device firmware
  • User knowledge

If these safeguards fail, the cell has no independent mechanism to stop unsafe operation.


Thermal Runaway Considerations

The most serious lithium-ion failure mode is thermal runaway.

This occurs when heat generation exceeds heat dissipation, triggering self-sustaining exothermic reactions.

Potential causes include:

  • Internal short circuits
  • Mechanical damage
  • Severe overcharging
  • Manufacturing defects

Once initiated:

  • Cell temperature rises rapidly
  • Electrolyte vaporizes
  • Pressure increases
  • Venting occurs
  • Ignition becomes possible

A protection circuit reduces the likelihood of events that commonly initiate thermal runaway but cannot completely eliminate risk.


Why Flashlight Enthusiasts Prefer Unprotected Cells

Many advanced flashlight systems use sophisticated drivers that already include:

  • Low-voltage protection
  • Thermal regulation
  • Reverse-polarity protection
  • Current limiting

Because these safety systems exist at the device level, enthusiasts often prefer unprotected cells to maximize:

  • Current delivery
  • Turbo output
  • Runtime efficiency
  • Voltage stability

In this context, the protection circuit is viewed as redundant and performance-limiting.


The Engineering Tradeoff

The infographic ultimately illustrates a classic engineering principle:

Protected Cell

Optimized for:

  • Safety
  • Simplicity
  • Fault tolerance
  • Consumer applications

Unprotected Cell

Optimized for:

  • Power density
  • Current delivery
  • Electrical efficiency
  • High-performance applications

Neither design is inherently "better."

The optimal choice depends entirely on whether the application prioritizes fault mitigation or maximum electrical performance.

For most casual flashlight users, a protected cell provides a larger safety margin. For advanced lighting systems, power tools, and performance-oriented electronics, unprotected cells are often the preferred engineering solution because they allow the device to fully utilize the capabilities of the underlying lithium-ion chemistry.
